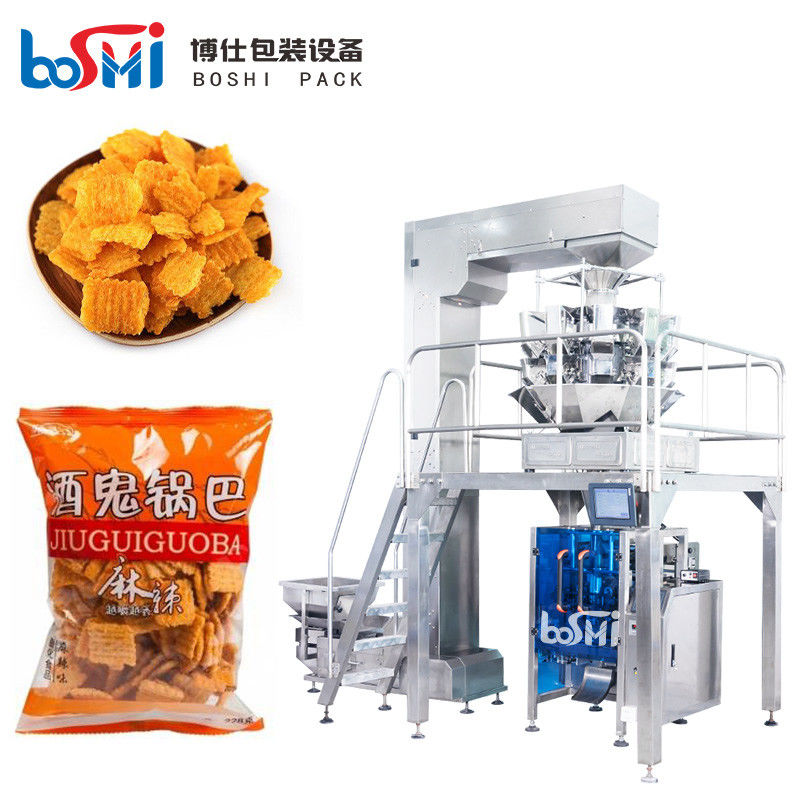

Fully Automatic Snack Cracker Cookie Back Side Sealing Bag Vertical Packing Machine

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5000USD-18500USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Key Selling Points: Save Cost And Labour Machine Type: Filling And Sealing Machine
Key Words: Fully Automatic Snack Cracker Cookie Back Side Sealing Bag Vertical Packing Machine Function: Wrapping, Labeling, Sealing, Date Printing
Packing Speed: 5-60 Bags/min Dimension(L*W*H): L 1350 * W 1000 * H 1400 Mm
Packaging Type: Bags, Film, Foil Voltage: 110v/220v/380v/440v
Film Thickness: 0.03-0.1mm Driven Type: Pneumatic
Machinery Test Report: Provided Core Components: Motor, PLC, Servo Driver Etc
Warranty Of Core Components: 1 Year

Product Description

Fully Automatic Snack Cracker Cookie Back Side Sealing Bag Vertical Packing Machine





Main Features:
1) World famous brand PLC control system, wide version touch screen, convenient to operate
2) Servo film pulling system, Pneumatic horizontal sealing. Better than the traditional one.
3) Use world famous electric components, stable and long service life.
4) High packing speed, save labour and time.
5) Different language is acceptable.



Applications:

Suitable for frozen product, macaroni,  popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food like meat ball, chicken leg and etc.





Whole machine main including 5 parts:

Multihead weigher
BS-420 Packing machine
Z type product elevator
Working platform
Finished product conveyor




Technical Parameters:
Model BS-420G
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Multi-weigher
Weighting and filling system Head weighers
Weighting range 10-3000g
(Different product have different weighting range )
Accuracy: Bias:+-0.5g
Filling speed: 65bags/min
Hoper volume 1.6/2.5L/5L
Total power: 1.0kw
Weight
380KG





Fully Automatic Snack Cracker Cookie Back Side Sealing Bag Vertical Packing Machine 0



Fully Automatic Snack Cracker Cookie Back Side Sealing Bag Vertical Packing Machine 1
Fully Automatic Snack Cracker Cookie Back Side Sealing Bag Vertical Packing Machine 2
