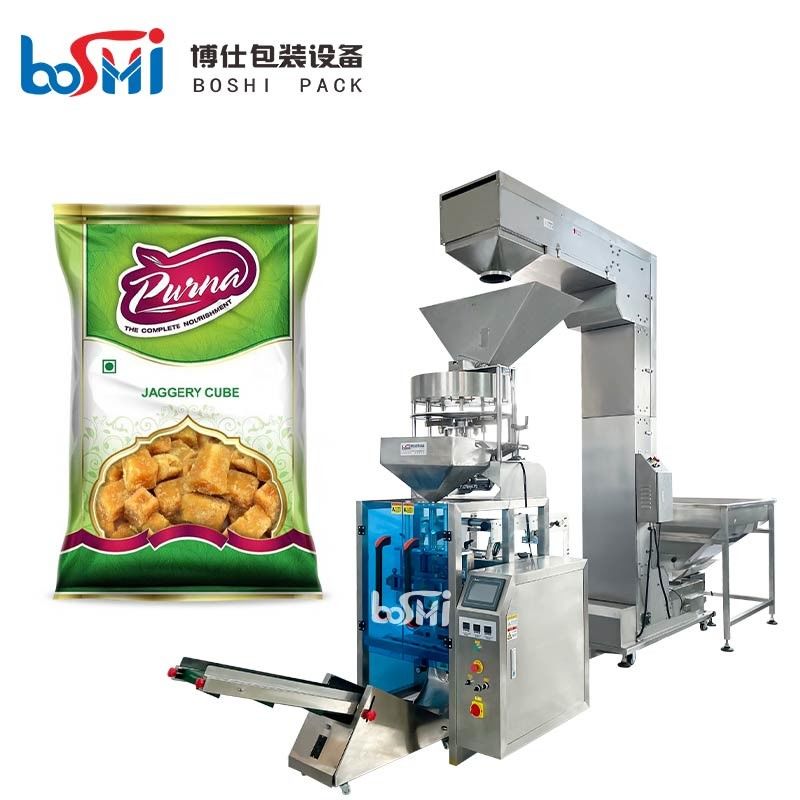

Automatic Solid Granule Packing Machine With PLC Control System

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5800USD-12130USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Condition: Brand New Key Words: Automatic Volumetric Cup Vertical Form Fill Seal Packing Machine
Packaging Type: Bag, Film Automatic Grade: Full Automatic
Packaging Material: Plastic, Paper Dimension(L*W*H): L 1080 * W 1300 * H 1400 Mm
Voltage: 110v/220v/380v/440v Film Thickness: 0.03-0.1mm
Driven Type: Pneumatic Machinery Test Report: Provided
Packing Speed: 5-60 Bags/min Core Components: Motor, PLC, Servo Driver Etc
Warranty Of Core Components: 1 Year
High Light:

Solid Granule Packing Machine

,

PLC Granule Packing Machine

,

Automatic solid packing machine


Product Description

Automatic Volumetric Cup Fine Food Granule Solid Packing Machine





Product  Description:

Start machine till the temperature constant→set the parameters(bag length and packing weight)→feeding product→automatic filling machine→date printing→forming bag→filling→sealing→cutting→exit conveying;(driving film by a pair of belt:low resistance,driving film fast)





Application:

Applicable for the chocolate, nuts, seeds, potato chips, peanut, nuts, dried fruit, jelly, frozen dumplings, biscuits, corn, hardware, plastic, etc. Various kinds of granular.





Standard Features:



1. Import PLC computer control system, human-machine screen, easy touch screen operation.

2. With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.

3. Perfect automatic alarm function, to minimize the loss.

4. Multiple automatic alarm protection functions to protect the worker and machine.
5. Bag type can be custom, can provide customers with pillow bag, pocket, hole bag, joint and so on.
6. Touch screen with stable and reliable PLC control, bag-making, metering, filling, sealing, coding, bag-cutting in one step.
7. The film is controlled by servo motor and servo driver.
8. External film release mechanism, ensure the film running smoothly.
9. Vertical sealing process, automatic adjustment of film position, easy to adjust.





Specdification:

Model
BS-420V
Measure system Volumetric cup
Measuring range
20ml-1200ml(need to change the cups)
Cup capacity 80L
Accuracy +/-1%
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length
50-300 mm
Packing speed 10-70 bags/ min
Type of sealing
Pillow bag,3 or 4 side seal and gusset bag,etc.
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Power 2KW
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg





Automatic Solid Granule Packing Machine With PLC Control System 0

Automatic Solid Granule Packing Machine With PLC Control System 1

Automatic Solid Granule Packing Machine With PLC Control System 2



Automatic Solid Granule Packing Machine With PLC Control System 3

Automatic Solid Granule Packing Machine With PLC Control System 4

Automatic Solid Granule Packing Machine With PLC Control System 5
