| Place of Origin: | China |
|---|---|

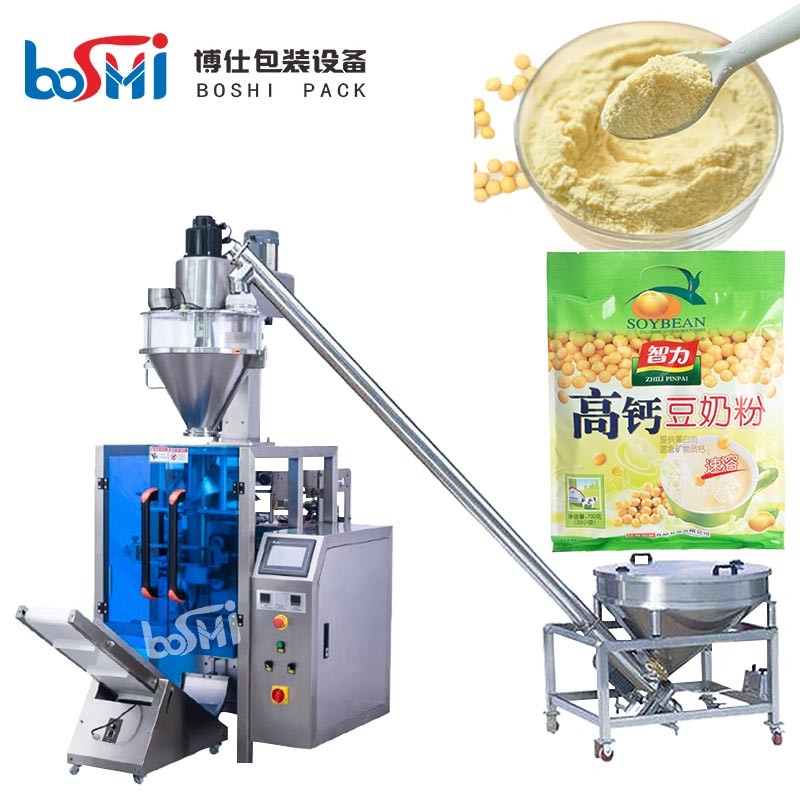

| Brand Name: | BOSHI Powder packing machine |
| Certification: | CE, ROSH, SGS |
| Model Number: | BS-420P BS-520P |
| Minimum Order Quantity: | 1set |
| Price: | 8800-10800 USD |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 50 sets/ month |
| Advantages: | Feeding Weighting Filling Sealing Together | Suitable Film: | Most Of Laminated Film |
|---|---|---|---|
| Type Of Sealing:: | Pillow Bag Or More | Machine Speed Range:: | 5-60 Bags/ Min |
| Bag Width:: | 50-200 Mm | Bag Length:: | 50-300 Mm |
| Function:: | FILLING, Wrapping, Labeling, Sealing, Date Printing | Driven Type:: | PneumaticPillow Bag Or Gusset Bag Or Quad Side Seal |
| Voltage:: | 220/380v | Dimension(L*W*H):: | L 1320 * W 920 * H 1392 Mm |
| High Light: | Milk Powder Packing Machine,Masala Powder Packing Machine,High Speed milk powder packaging machine |
||
1. PLC computer control whole system.
2. Big touch screen, easy to operate .
3. High precise positioning with servo film moving system.
4. Alarm function, which help to handle the trouble easily.
5. Automatic complete all packaging processes, from measuring, feeding, filling, printing, to finish bag.
6. The machine can make pillow bag and 3 side seal bag ,etc.
|
Model
|
BS-420P |
|
Film width
|
Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Auger filler | |
| Weighting and filling system | Auger screw |
| Weighting range | 10-5000g (Different product have different weighting range ) |
| Accuracy: | Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1% |
| Filling speed: | 10-60 bags/min |
| Filler hoper volume | 50 L |
| Total power: | 1.5 kw |
| Weight |
200KG
|
Machine advantages:
Applications:
Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, spice, flour,and etc.
