| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | Stable Performance | Key Words: | Automatic Sugar Salt Food Granule Packaging Machine 1kg |
|---|---|---|---|
| Voltage: | 220V/380V Single/three Phase | Packaging Type: | Pillow Bag |
| Automatic Grade: | Full Automatic | Packaging Material: | Plastic, Paper |
| Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Granule Packing Machine 1kg,Food Granule Packing Machine,Multifunctional Packing Machine 1kg |
||

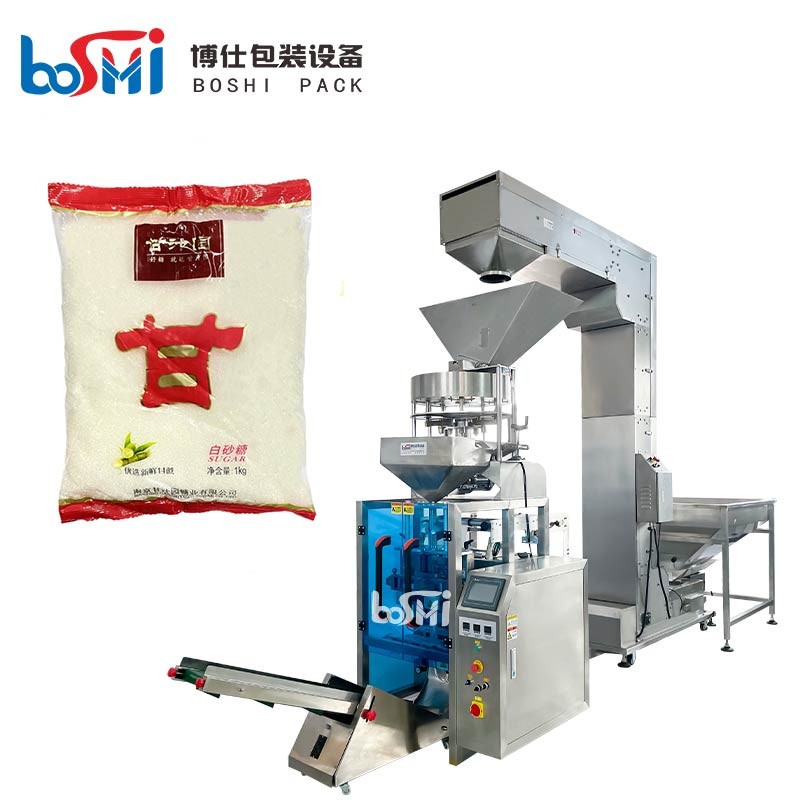

Automatic Sugar Salt Food Granule Packaging Machine 1kg
Product Description:
Application:
BOSHI Automatic volumetic cups packing system special for high precision measurement and granule product, such as:rice, salt, food granule, fruit cold, candy, candy, pistachio, medicines,etc.
Standard Features:
1.BS-420 Vertical Granule packing machinery is our company introduction of foreign advanced technology, and is improved and the production of a kind of high quality,high performance automatic packaging machine, complete automatic feeding,measuring,bag-making,deviation,filling,sealing,date printing and finished product output and a series of automatic functions.
2.The machine adopts high precision servo film transport system, PLC program control, developed touchable human-machine interface of advanced automatic positioning, photoelectric tracking,digital temperature control,etc.
3.Operation is more simple,perfect.It is the first choice of food packaging industry to improve the production efficiency,reduce labor intensity, improve the grade of packaging equipment.
4.Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE, pp,and other heat-sealing packaging materials, etc.
5.It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),product out-putting automatically.
6.High precision, high efficiency without crash the materials.
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
