| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-15130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | 4 Head Weigher | Key Words: | Automatic 4 Head Linear Weigher Grain Rice Bean Fine Granule Packing Machine |
|---|---|---|---|
| Packaging Type: | Bags, Film, Foil | Function: | Wrapping, Labeling, Sealing, Date Printing |
| Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm | Voltage: | 110v/220v/380v/440v |
| Film Thickness: | 0.03-0.1mm | Driven Type: | Pneumatic |
| Automatic Grade: | Automatic | Machinery Test Report: | Provided |
| Core Components: | Motor, PLC, Servo Driver Etc | Warranty Of Core Components: | 1 Year |
| Packing Speed: | 5-60 Bags/min |

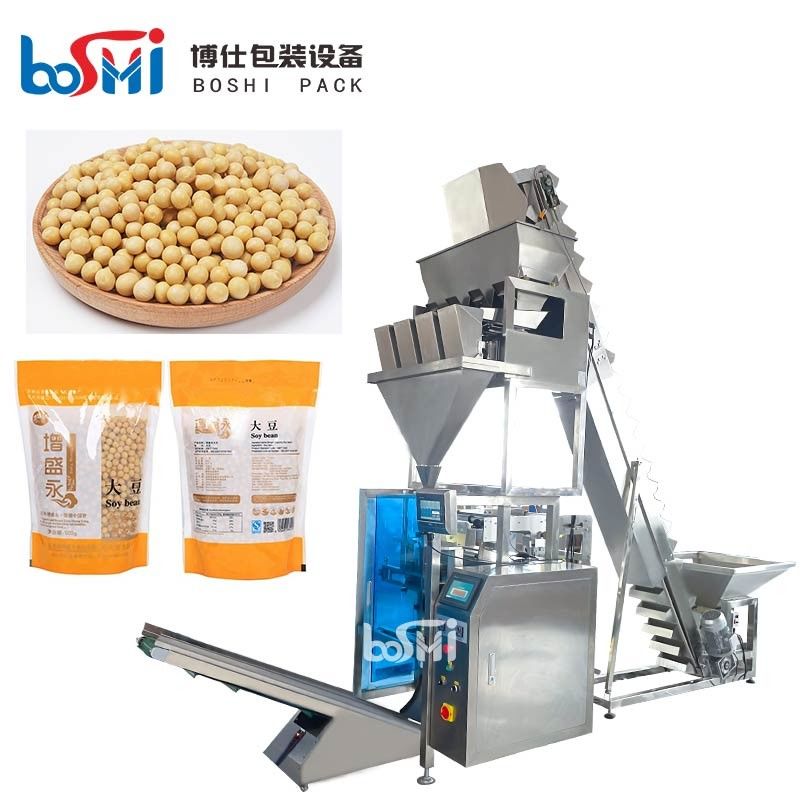

Automatic 4 Head Linear Weigher Grain Rice Bean Fine Granule Packing Machine
Applications:
Suitable for different kind of granular products, such as chips, peanut, dried fruit,popcorn,dates,coffee bean,
chips,marshmallow, sunflower seeds,beans,walnuts, pistachios, salad vegetables ,wide use in industrial product and non industrial product.
Standard Features:
| Model | BS-420G-4 |
| Packing speed | 5-60 bags/ min |
| Support bag size | L(50-300 )*W(50-200 )mm |
| Bag type | Pillow bag(back seal) /3side seal /4 side seal |
| Film width | ≤420mm |
| Measure system | 4 heads weigher weighting |
| Measuring range (max) | 3000 ml |
| Packing accuracy | ±0.5-2.0 g |
| Film thickness range | 30-80um |
| Power | 220 V /380 V ,50 HZ/60 HZ,2.2KW |
| Air consumption | 1.0 Mpa |
| Gas consumption | 0.4 m³/ min |
| Machine material | Stainless steel SUS304 |
| Machine weight | 600 kg |
| Machine dimension | 1080*1300*1400mm |
| Applications | Suitable for granular products, such as, peanut, nuts,dried fruit,popcorn, dates, coffee bean, chips, seeds, walnuts, pistachios, screws, buckles, and etc. |
