| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | Cost Effective | Key Words: | Automatic High Speed Fine Granule Volumetic Cup Packaging Machine |
|---|---|---|---|
| Packaging Type: | Stand Pillow Bag | Automatic Grade: | Full Automatic |
| Packaging Material: | Plastic, Paper | Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm |
| Voltage: | 110v/220v/380v/440v | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Multifunction Granule Packing Machine,High Speed Granule Packing Machine,PLC High Speed Packaging Equipment |
||

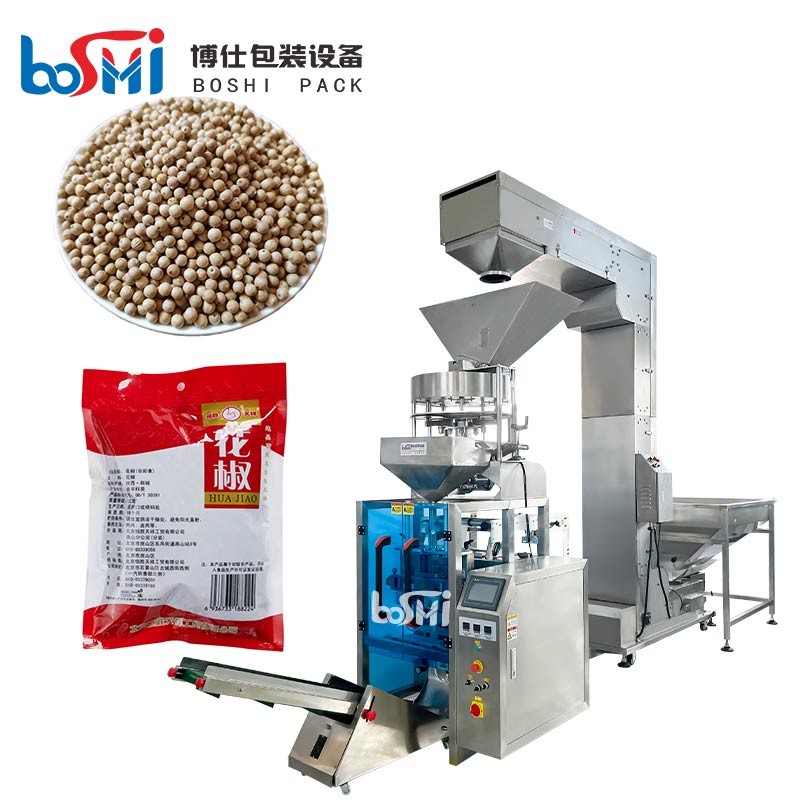

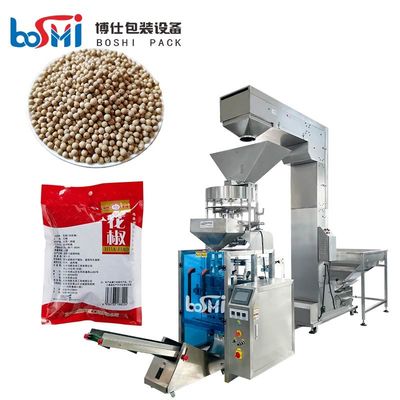

Automatic High Speed Fine Granule Volumetic Cup Packaging Machine
Product Description:
Application:
Applicable for the chocolate, nuts, seeds, potato chips, peanut, nuts, dried fruit, jelly, frozen dumplings, biscuits, corn, hardware, plastic, etc. Various kinds of granular.
Standard Features:
1. Import PLC computer control system, human-machine screen, easy touch screen operation.
2. With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
3. Perfect automatic alarm function, to minimize the loss. Protect worker and machine.
4. Bag forming device made of one metal panel, ensure make the beautiful bag shape.
5. Electronic control module control by touch screen, easy to operate.
6. Machine can finish all step together, feeding, measuring, filling, bag making.
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
