| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | Reasonable Price | Key Words: | Automatic Volumetric Cup Sugar Salt Grain Granular Packaging Machine |
|---|---|---|---|
| Packaging Type: | Pillow Bag Or Gusseted Pillow Bag | Automatic Grade: | Full Automatic |
| Packaging Material: | Plastic, Paper | Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm |
| Voltage: | 110v/220v/380v/440v | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Salt Granule Pouch Packing Machine,Sugar Granule Pouch Packing Machine,Volumetric Cup Grain Packing Machine |
||

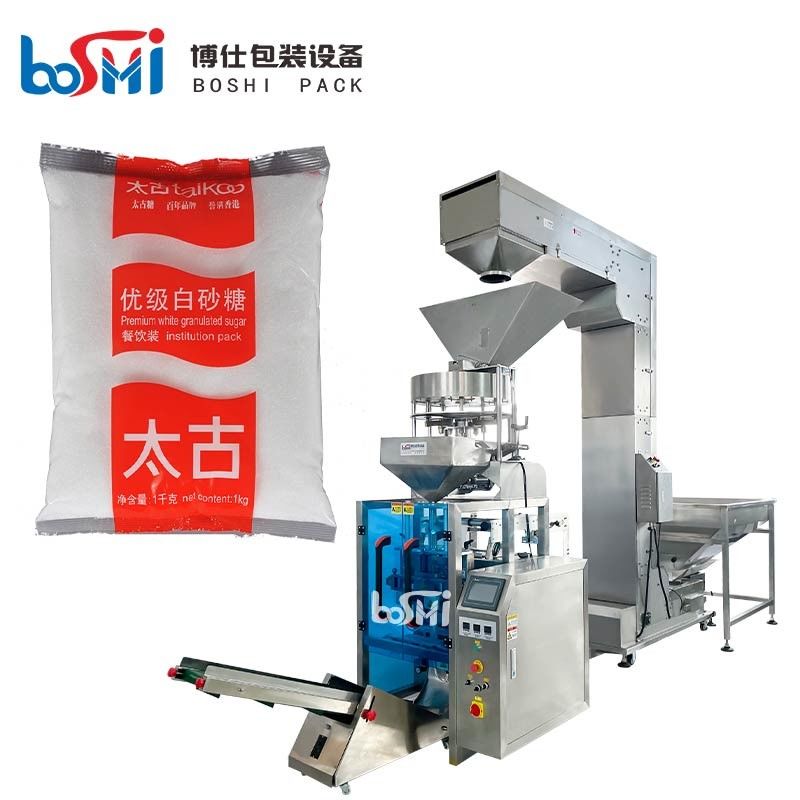

Automatic Volumetric Cup Sugar Salt Grain Granular Packaging Machine
Product Description:
Application:
Applicable for the chocolate, nuts, seeds, potato chips, peanut, nuts, dried fruit, jelly, frozen dumplings, biscuits, corn, hardware, plastic, etc. Various kinds of granular.
Standard Features:
1. Import PLC computer control system, human-machine screen, easy touch screen operation.
2. With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
3. Perfect automatic alarm function, to minimize the loss. Protect worker and machine.
4. The whole system, adopt all step together, avoid manual working.
5. Full machine made of stainless steel 304, food grade, ensure long service life.
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
