Detail Information

Key Words:	Automatic Ice Candy Sugar Granule Vertical Packing Machine 500g	Function:	Packing Granule
Key Selling Points:	Multihead Weigher 10 Head	Voltage:	380V Three Phase 50-60hz
Driven Type:	Electrical And Pneumatic	Core Components:	Motor, PLC, Servo Driver Servo Motor Etc
Packing Style:	Pillow Bag	Packing Speed:	5-60 Bags/min
Dimension(LWH):	L 1350 * W 1000 * H 1400 Mm	Packaging Type:	Bags, Film, Foil
Film Thickness:	0.03-0.1mm	Machinery Test Report:	Provided
After Sales Service:	Video Technical Support, Online Support
High Light:	Vertical Granule Packing Machine , 500g Granule Packing Machine , Sugar granule vertical packing machine

Product Description

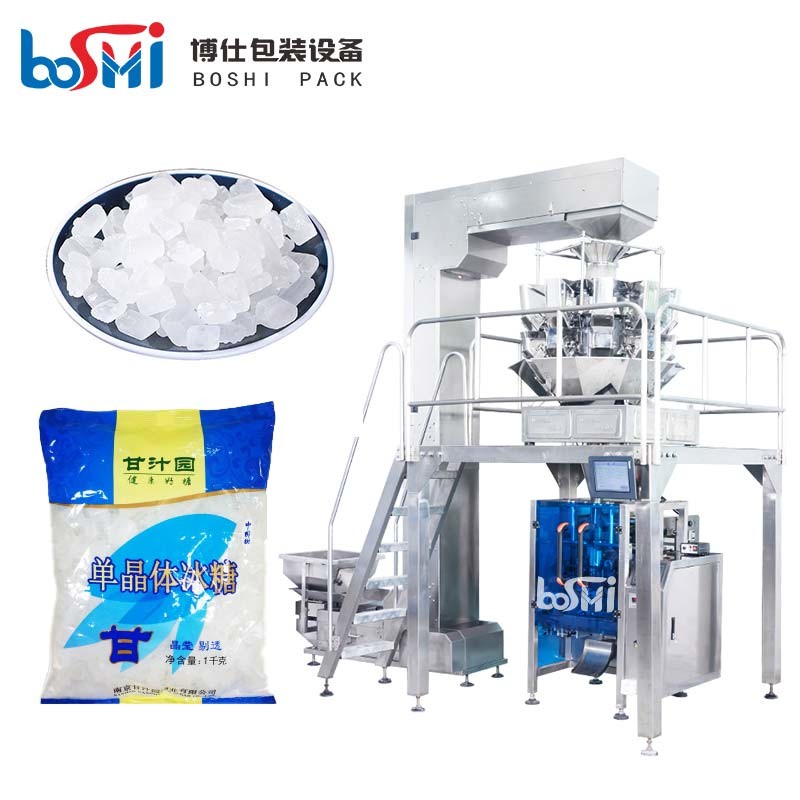

Automatic Ice Candy Sugar Granule Vertical Packing Machine 500g

Main Features:

1. Full complete production line of multihead weigher packing machine.

2. Full-automatic weighing and packing system, efficient and simple to use.

3. Language can be custom by customer.

4. Amplitude of each linear feeder can be adjusted separately.

5. Servo controller with color touch screen, integrated with packing machine.

6. Imported PLC and servo system with smooth and stable performance, high speed and efficiency.

7. Suitable for different kinds of packing film: PP, PE, ALU laminated film.

Applications:

Suitable for puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits,

pasta, herbal pieces, pet food, frozen food, different kinds of granule or irregular product.

Machine characteristic:

1. PLC controller with touch screen.

2. Servo-driven cutting knife system

3. Servo-driven film transport system

4. Date printer and film feeding system synchronous

5. Quickly changing bag former

6. Eye mark sensor for film tracking

7. Main machine stainless steel 304

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-420 BS-520 BS-720

Minimum Order Quantity:	One sets
Price:	5000USD-18500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year
