| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Machine Type: | Pneumatic Type | Key Selling Points: | Hot Sale Product 2022 |
|---|---|---|---|
| Key Words: | Automatic Volumetric Cup Food Granule Cashew Nut Packing Machine | Packaging Material: | Laminated Film & PE Film |
| Automatic Grade: | Full Automatic | Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm |
| Voltage: | 110v/220v/380v/440v | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Pneumatic Granule Packing Machine,Cashew Nut Granule Packing Machine,Cashew Nut Pouch Packing Machine |
||

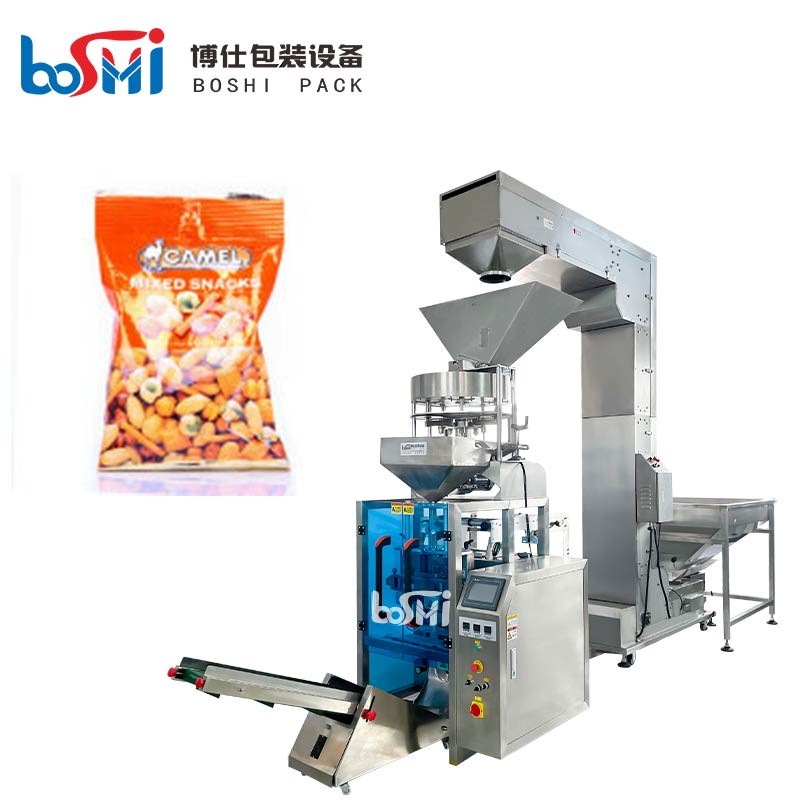

Automatic Volumetric Cup Food Granule Cashew Nut Packing Machine
Standard Features
1. Bag making, filling, sealing, cutting, date printing in one step;
2. Intelligent: Machine speed and bag length can be set in screen directly.
3. Profession: Independent temperature controller suitable for different kinds of film material.
4. Characteristic: Automatic stop and alarm function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, stable peroformance.
6. New design, beautiful appearance, more reasonable structure, more advanced technology
7. Imported PLC computer control system, color touch screen, easy to operate, intuitive and efficient
8. Imported film transport system, imported color standard sensor, accurate positioning, excellent performance, beautiful packaging
Application:
Suitable for all kind of granule product, like rice, beans, seeds, peanut, sugar, corn, dried fruit, and solid product.
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
