| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | New Design 2022 | Key Words: | Automatic Volumetric Cup Seed Peanut Dried Nut Packing Machine |
|---|---|---|---|
| Packaging Material: | Laminated Film & PE Film | Brand: | BOSHI |
| Automatic Grade: | Full Automatic | Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm |
| Voltage: | 110v/220v/380v/440v | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Automatic Peanut Packing Machine,Intelligent Peanut Packing Machine,Volumetric Cup packing peanut machine |
||

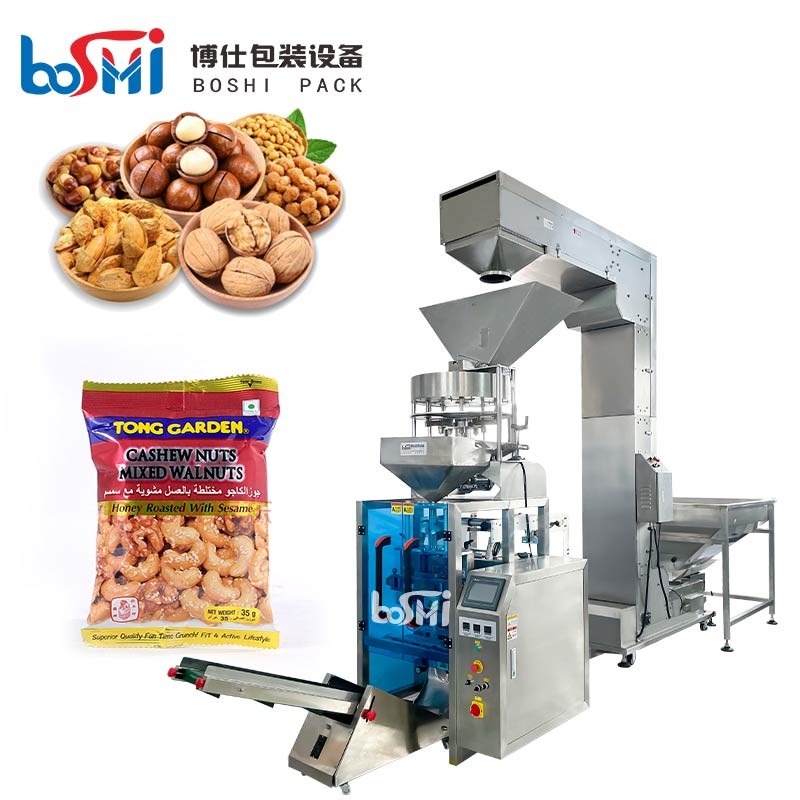

Automatic Volumetric Cup Seed Peanut Dried Nut Packing Machine
Standard Features
1. Bag making, filling, sealing, cutting, date printing in one step;
2. Intelligent: Machine speed and bag length can be set in screen directly.
3. Profession: Independent temperature controller suitable for different kinds of film material.
4. Characteristic: Automatic stop and alarm function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, stable peroformance.
Application:
Suitable for all kind of granule product, like rice, beans, seeds, peanut, sugar, corn, dried fruit, and solid product.
Main Features:
1. Double transducer controller system, flexible bag length cutting, operator don't need to adjust the feeding elevator,
saving time and roll film
2. human interface operation, convenient and quick product parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,eyemark input cutting position which makes the bag sealing and cutting more accurate.
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
