| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | New Product 2022 | Key Words: | Automatic Volumetric Cup Sugar Salt Packing Machine 1kg 2kg |
|---|---|---|---|
| Brand: | BOSHI | Automatic Grade: | Full Automatic |
| Packaging Material: | Plastic, Paper | Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm |
| Voltage: | 110v/220v/380v/440v | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Pneumatic 1 Kg Salt Packing Machine,Volumetric Cup 1 Kg Salt Packing Machine,1Kg automatic salt packing machine |
||

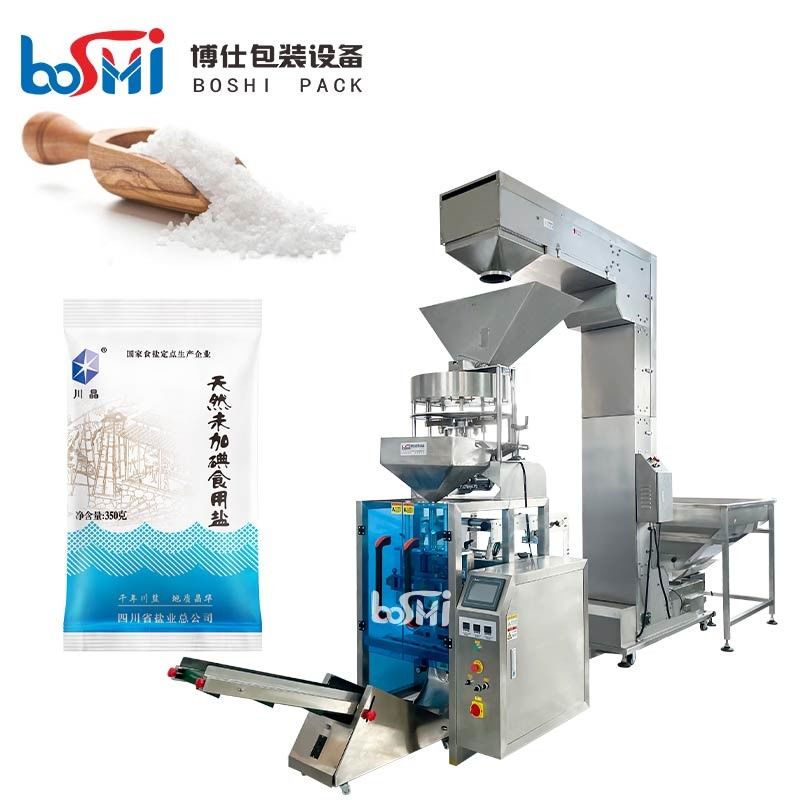

Automatic Volumetric Cup Sugar Salt Packing Machine 1kg 2kg
Standard Features
1. Bag making, filling, sealing, cutting, date printing in one step;
2. Intelligent: Machine speed and bag length can be set in screen directly.
3. Profession: Independent temperature controller suitable for different kinds of film material.
4. Characteristic: Automatic stop and alarm function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, stable peroformance.
Application:
Suitable for all kind of granule product, like rice, beans, seeds, peanut, sugar, dried fruit.
Standard Features:
1. Import PLC computer control system, human-machine screen, easy touch screen operation.
2. With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
3. Perfect automatic alarm function, to minimize the loss.
4. Combine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.
5. Bag type: can make it with pillow bag and vertical bag according to customer needs.
6. Low noise,high efficiency
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
