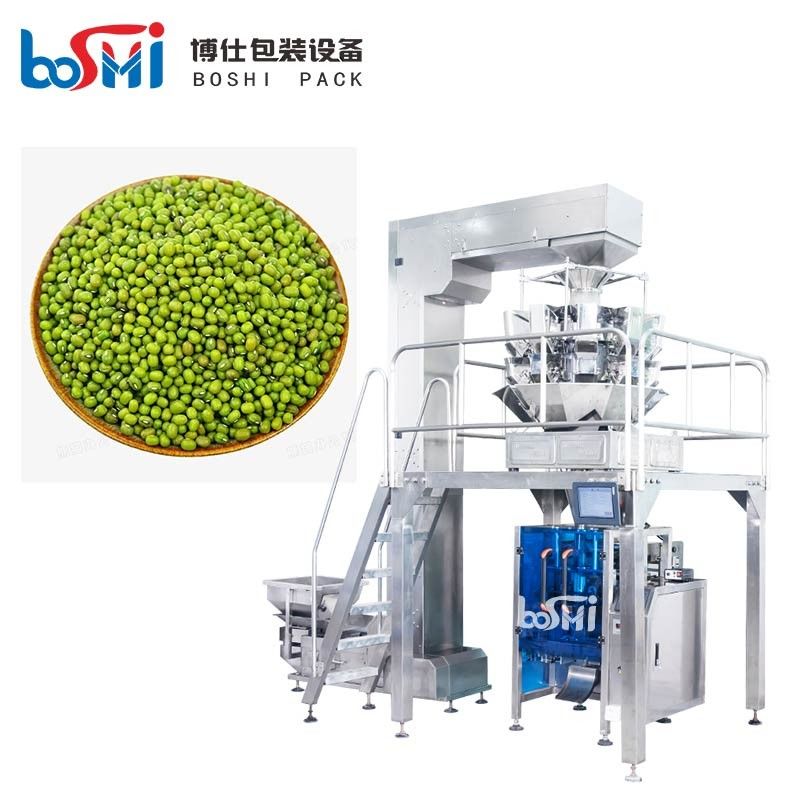

Full Automatic Granule Packing Machine For Grain Bean Dry Food Dry Fruit

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5000USD-18500USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Key Words: Automatic Grain Bean Dry Food Dry Fruit Granule Packaging Machine Voltage: 380V Three Phase 50-60hz
Function: Automatic Packaging System Key Selling Points: Multihead Weigher
Driven Type: Electrical And Pneumatic Core Components: Motor, PLC, Servo Driver Servo Motor Etc
Packing Style: Pillow Bag Packing Speed: 5-60 Bags/min
Dimension(L*W*H): L 1350 * W 1000 * H 1400 Mm Packaging Type: Bags, Film, Foil
Film Thickness: 0.03-0.1mm Machinery Test Report: Provided
After Sales Service: Video Technical Support, Online Support
High Light:

Grain Bean Granule Packing Machine

,

Dry Fruit Granule Packing Machine

,

Automatic dry food packing machine


Product Description

Automatic Grain Bean Dry Food Dry Fruit Granule Packaging Machine





Main Features:
1. Full complete production line of multihead weigher packing machine.
2. Full-automatic weighing and packing system, efficient and simple to use.
3. Language can be custom by customer.
4. Amplitude of each linear feeder can be adjusted separately.
5. Horizontal, vertical independent temperature control system, suitable for various of laminated film, PE film packing material.
6. Packing type: pillow bag, gusseted bag, stand up pouch, doybag.
7. Product feeding, weighing, bag-making, sealing, packing, date printing.




Applications:

Suitable for puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits,

pasta, herbal pieces, pet food, frozen food, different kinds of granule or irregular product.



Machine characteristic:

1. PLC controller with touch screen.
2. Servo-driven cutting knife system
3. Servo-driven film transport system
4. Date printer and film feeding system synchronous
5. Quickly changing bag former
6. Eye mark sensor for film tracking
7. Main machine stainless steel 304




Technical Parameters:
Model BS-420G
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Multi-weigher
Weighting and filling system Head weighers
Weighting range 10-3000g
(Different product have different weighting range )
Accuracy: Bias:+-0.5g
Filling speed: 65bags/min
Hoper volume 1.6/2.5L/5L
Total power: 1.0kw
Weight
380KG





Full Automatic Granule Packing Machine For Grain Bean Dry Food Dry Fruit 0



Full Automatic Granule Packing Machine For Grain Bean Dry Food Dry Fruit 1
Full Automatic Granule Packing Machine For Grain Bean Dry Food Dry Fruit 2
