Detail Information

Key Selling Points:	Full Automatic Packing System	Function:	Wrapping, Sealing, Date Printing
Key Words:	Automatic Frozen Food Sea Food Shrimp Fish Packaging Machine	Place Of Origin:	Made In China
Packing Speed:	5-60 Bags/min	Dimension(LWH):	L 1350 * W 1000 * H 1400 Mm
Packaging Type:	Bags, Film, Foil	Voltage:	110v/220v/380v/440v
Film Thickness:	0.03-0.1mm	Driven Type:	Pneumatic
Machinery Test Report:	Provided	Core Components:	Motor, PLC, Servo Driver Etc
Warranty Of Core Components:	1 Year
High Light:	Multihead Weigher Frozen Food Packing Machine , Sea Food Frozen Food Packing Machine , Shrimp Multihead Weigher Packing Machine

Product Description

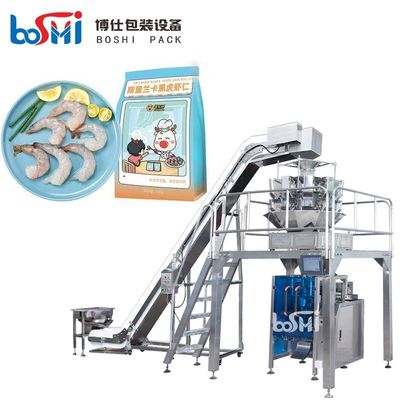

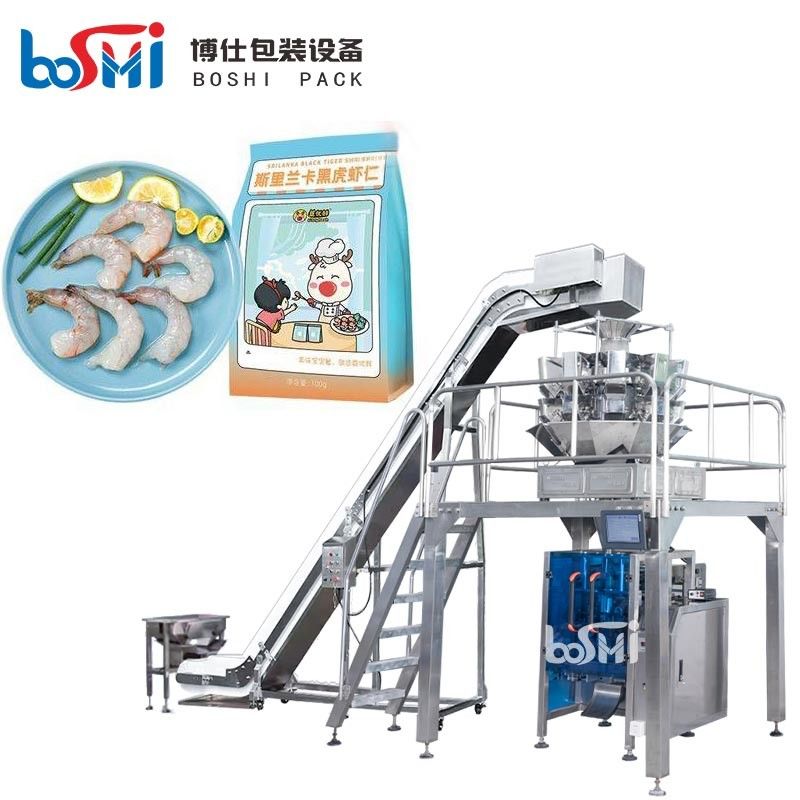

Automatic Frozen Food Sea Food Shrimp Fish Packaging Machine

Main Features:

1) World wide famous brand PLC control system, with interface touch screen.

2) With alarm system to reduce waste and protect worker.

3) It can complete feeding, weighing, filling, bag making, date coding, gas charging or exhausting, production counting,

4) Z shape elevator made of stainless steel 304 and food grade PP. Suitable for different kinds of food stuff.

5) All machine system control by human interface touch screen, easy to operate.

6) Optional device: metal detector, weight checker, date printer, turntable.

Applications:

Suitable for frozen product, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food, hardware and medicine such particle,

strip and irregular shape.

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Multihead weigher

3) Working platform

4) Main packing machine

5) Finished product conveyor

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-420 BS-520 BS-720

Minimum Order Quantity:	One sets
Price:	5000USD-18500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year

Multihead Weigher Frozen Food Packing Machine For Sea Food Shrimp Fish

Multihead Weigher Frozen Food Packing Machine
