Detail Information

Key Selling Points:	Multifunctional	Place Of Origin:	Made In China
Key Words:	Automatic Fish Ball Chicken Nugget Frozen Product Packaging Machine	Function:	Wrapping, Labeling, Sealing, Date Printing
Packing Speed:	5-60 Bags/min	Dimension(LWH):	L 1350 * W 1000 * H 1400 Mm
Packaging Type:	Bags, Film, Foil	Voltage:	110v/220v/380v/440v
Film Thickness:	0.03-0.1mm	Driven Type:	Pneumatic
Machinery Test Report:	Provided	Core Components:	Motor, PLC, Servo Driver Etc
Warranty Of Core Components:	1 Year
High Light:	Pneumatic Frozen Food Packing Machine , Multifunctional Frozen Food Packing Machine , Nugget frozen food packaging machine

Product Description

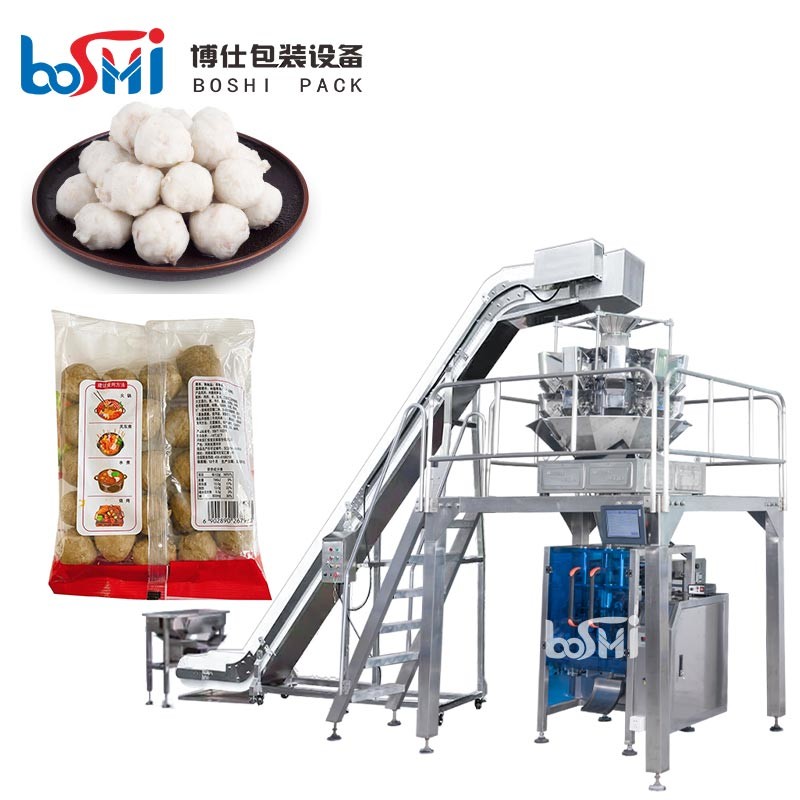

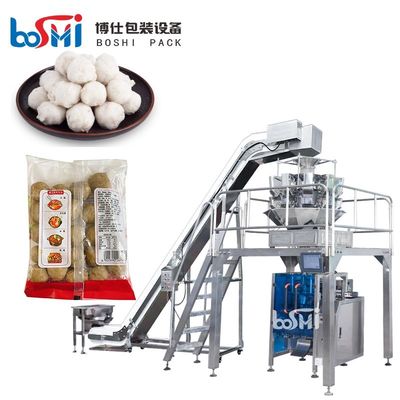

Automatic Fish Ball Chicken Nugget Frozen Product Packaging Machine

Main Features:

1) World wide famous brand PLC control system, with interface touch screen.

2) Perfect alarm system to reduce waste;

3) It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting,

and finished product delivery when it equips with feeding and measuring equipment;

4) The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or

according to customer’s requirements.

5) With 3 servo-motor controlled,mechanic horizontal system,The machine is more stable and fast

speed than the normal one with pheumatic system controlled.

Applications:

Suitable for frozen product, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food, hardware and medicine such particle,

strip and irregular shape.

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Multihead weigher

3) Working platform

4) Main packing machine

5) Finished product conveyor

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-420 BS-520 BS-720

Minimum Order Quantity:	One sets
Price:	5000USD-18500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year
