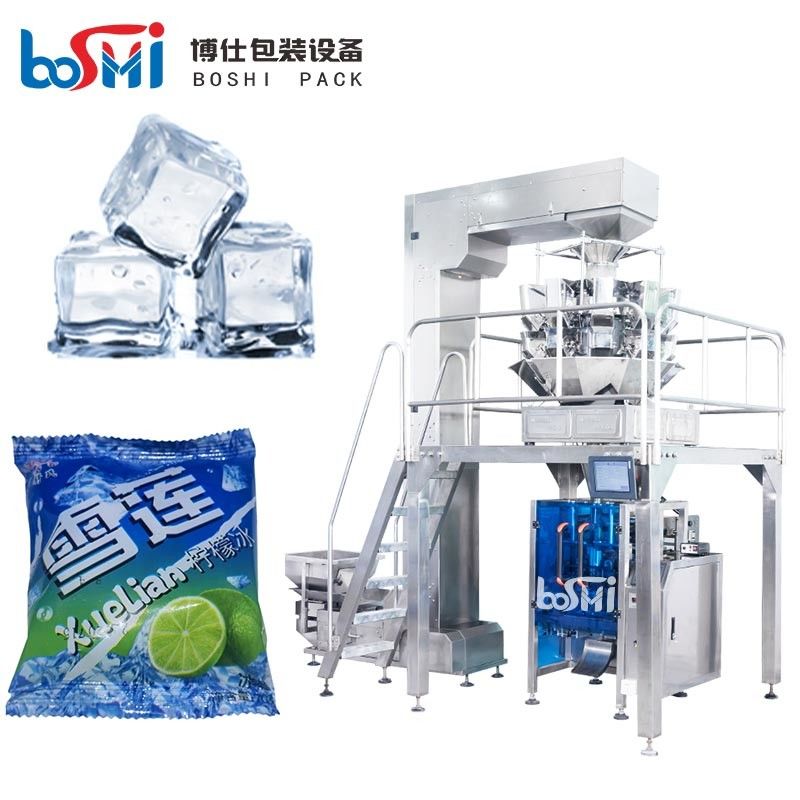

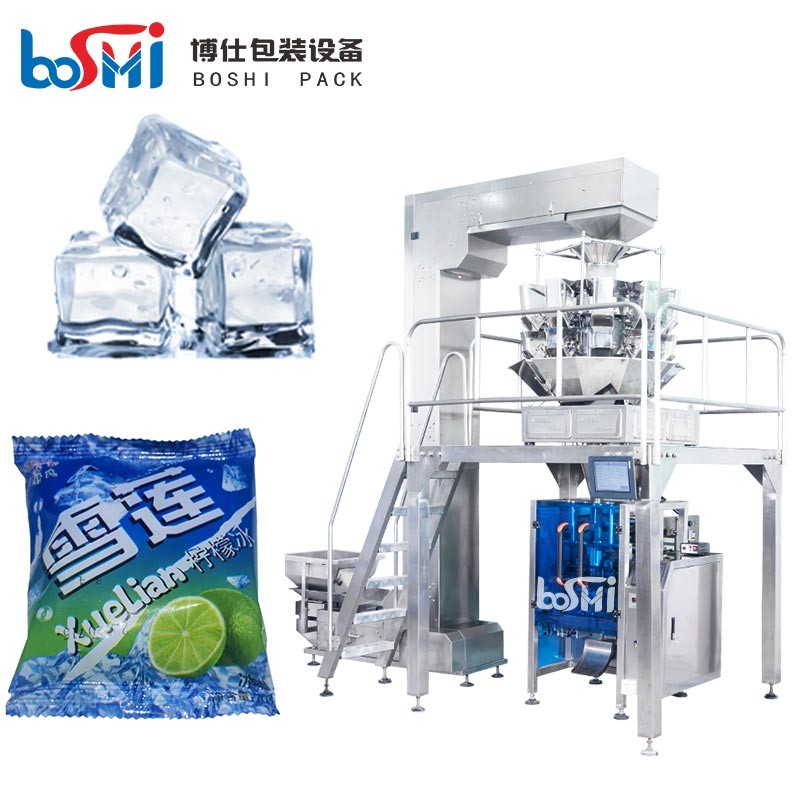

Automatic Ice Cube Frozen Food Packing Machine With Vibrating Weighing

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5000USD-18500USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Key Words: Automatic Ice Cube Frozen Product Packing Machine Voltage: 220V Single Phase 50-60hz
Function: Automatic Packing Line Key Selling Points: Vibrating Weighing
Driven Type: Electrical And Pneumatic Core Components: Motor, PLC, Servo Driver Servo Motor Etc
Packing Style: Pillow Bag Packing Speed: 5-60 Bags/min
Dimension(L*W*H): L 1350 * W 1000 * H 1400 Mm Packaging Type: Bags, Film, Foil
Film Thickness: 0.03-0.1mm Machinery Test Report: Provided
After Sales Service: Video Technical Support, Online Support
High Light:

Ice Cube Frozen Food Packing Machine


Vibrating Frozen Food Packing Machine


Weighing ice cube packing machine

Product Description

Automatic Ice Cube Frozen Product Packing Machine



Main Features:
1. Full compltet production line of feeding, weighing, filling and bag making, printing date and product output.
2. Full-automatic weighing and packing system, efficient and simple to use.
3. Weigh hopper followed by discharge, effectively prevents blockage.
4. Amplitude of each linear feeder can be adjusted separately.
5. High weight precision, high efficiency, and the material is not broken.
6. Optional equipment: weight checker, metal detector printer and etc.
7. Language can be custom by customer' requirement.



Suitable for puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits,

pasta, herbal pieces, pet food, frozen food, different kinds of granule or irregular product.


Machine characteristic:

1. PLC controller with touch screen interface
2. Servo-driven end seal jaws
3. Servo-driven film transport
4. Hot printer and film feeding system synchronous
5. Quickly changing one-piece bag former
6. Eye mark sensor for film tracking
7. Stainless steel frame


Technical Parameters:
Model BS-420G
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Weighting and filling system Head weighers
Weighting range 10-3000g
(Different product have different weighting range )
Accuracy: Bias:+-0.5g
Filling speed: 65bags/min
Hoper volume 1.6/2.5L/5L
Total power: 1.0kw



Automatic Ice Cube Frozen Food Packing Machine With Vibrating Weighing 0


Automatic Ice Cube Frozen Food Packing Machine With Vibrating Weighing 1
Automatic Ice Cube Frozen Food Packing Machine With Vibrating Weighing 2
