| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5000USD-18500USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | Special For Frozen Product | Packing Style: | Pillow Bag |
|---|---|---|---|
| Key Words: | Automatic Fronzen Potato Chips Meat Ball Frozen Food Packing Machine | Function: | Filling, Weighing, Wrapping, Printing |
| Packing Speed: | 5-60 Bags/min | Dimension(L*W*H): | L 1350 * W 1000 * H 1400 Mm |
| Packaging Type: | Bags, Film, Foil | Voltage: | 110v/220v/380v/440v |
| Film Thickness: | 0.03-0.1mm | Driven Type: | Pneumatic |
| Machinery Test Report: | Provided | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Meat Ball Frozen Food Packing Machine,Filling Frozen Food Packing Machine,Wrapping Potato Chips Packing Machine |
||

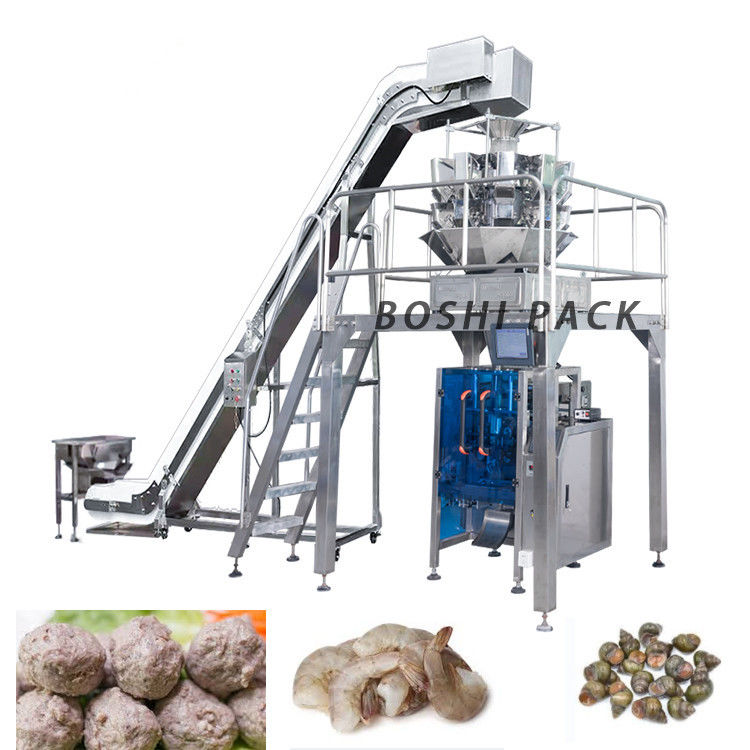

Automatic Fronzen Potato Chips Meat Ball Frozen Food Packing Machine
2) The machine adopts high precision servo film transport system, PLC Program control, developed
touchable human-machine interface of advanced automatic positioning, photoelectric tracking, digital temperature control,etc.
3) High precision, high efficiency without crash the material.
4) Running in a high automation and intelligent ,no pollution, low noise, saving energy
5) The complete set of equipment is economical, but with high efficiency and stable performance.
Suitable for different kinds of frozen product, meat ball, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,
jelly, candy, dried fruit, apple flake, rice dumpling, chocolate, frozen food, chicken leg, frozen potato chips.
Whole machine main including 4 parts:
| Model | BS-420G |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Multi-weigher | |
| Weighting and filling system | Head weighers |
| Weighting range | 10-3000g (Different product have different weighting range ) |
| Accuracy: | Bias:+-0.5g |
| Filling speed: | 65bags/min |
| Hoper volume | 1.6/2.5L/5L |
| Total power: | 1.0kw |
| Weight |
380KG
|
