Detail Information

Key Words:	Automatic Frozen French Fries Frozen Potato Chips Packing Machine	Key Selling Points:	Special Design For Fronzen Product
Function:	Waterproof	Voltage:	220V Single Phase 50-60hz
Driven Type:	Electrical And Pneumatic	Core Components:	Motor, PLC, Servo Driver Servo Motor Etc
Packing Style:	Pillow Bag	Packing Speed:	5-60 Bags/min
Dimension(LWH):	L 1350 * W 1000 * H 1400 Mm	Packaging Type:	Bags, Film, Foil
Film Thickness:	0.03-0.1mm	Machinery Test Report:	Provided
After Sales Service:	Video Technical Support, Online Support
High Light:	Automatic Frozen Food Packing Machine , French Fries Frozen Food Packing Machine , Frozen french fries packing machine

Product Description

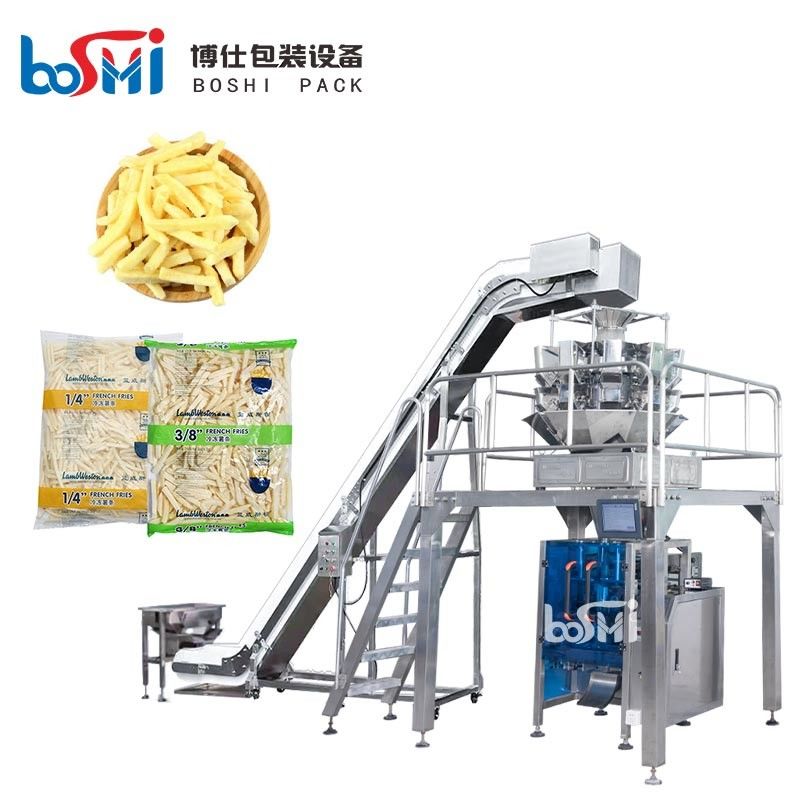

Automatic Frozen French Fries Frozen Potato Chips Packing Machine

Main Features:

1. Full compltet production line of feeding, weighing, filling and bag making, printing date and product output.

2. Full-automatic weighing and packing system, efficient and simple to use.

3. Weigh hopper followed by discharge, effectively prevents blockage.

4. Amplitude of each linear feeder can be adjusted separately.

5. World famous PLC brand, easy to operate and long life time.

6. Machine design of full stainless steel 304, food grade and waterproof.

7. Wide range of different kinds of irrgular product.

Applications:

Suitable for puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits,

pasta, herbal pieces, pet food, frozen food, different kinds of granule or irregular product.

Machine characteristic:

1. PLC controller with touch screen interface

2. Servo-driven end seal jaws

3. Servo-driven film transport

4. Hot printer and film feeding system synchronous

5. Quickly changing one-piece bag former

6. Eye mark sensor for film tracking

7. Stainless steel frame

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-420 BS-520 BS-720

Minimum Order Quantity:	One sets
Price:	5000USD-18500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year
