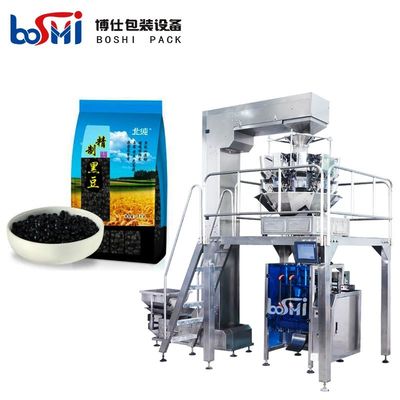

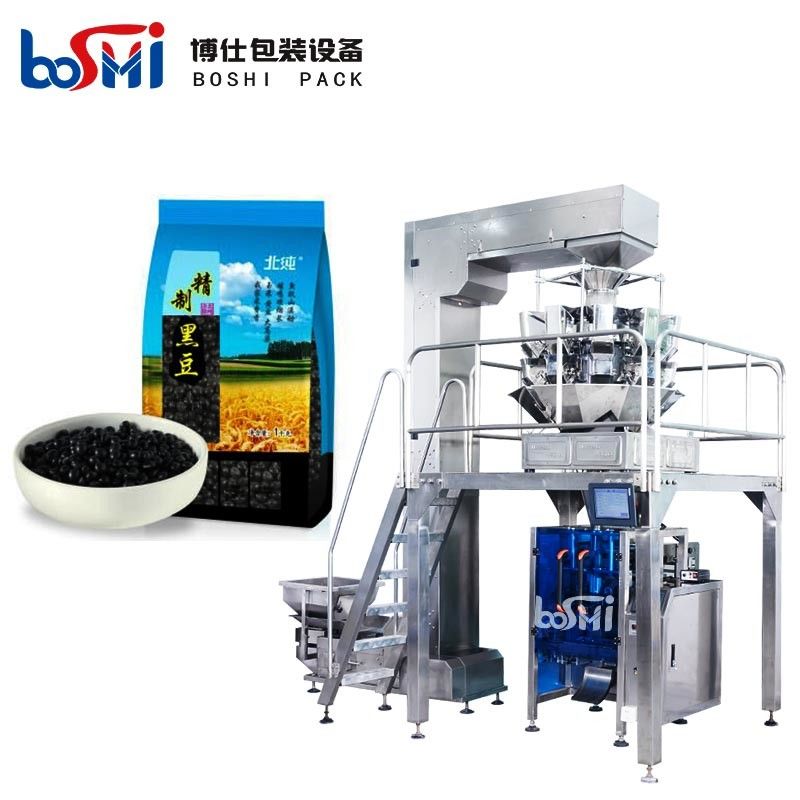

Automatic High Speed Vertical Packing Machine 5kg 10kg For Food

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5000USD-18500USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Key Words: Automatic High Speed Large Bag Vertical Packing Machine 5kg 10kg Packing System: Weighing System
Key Selling Points: Big Volume Voltage: Base On Customer's Requirement
Driven Type: Electrical And Pneumatic Core Components: Motor, PLC, Servo Driver Servo Motor Etc
Packing Style: Pillow Bag Packing Speed: 5-60 Bags/min
Dimension(L*W*H): L 1350 * W 1000 * H 1400 Mm Packaging Type: Bags, Film, Foil
Film Thickness: 0.03-0.1mm Machinery Test Report: Provided
After Sales Service: Video Technical Support, Online Support
High Light:

Vertical Packing Machine 5kg

,

Vertical Packing Machine 10kg

,

Food high speed packing machine


Product Description

Automatic high speed large bag vertical packing machine 5kg 10kg





Main Features:
1. BS-420 can automatically complete following work: material feeding--multi-head weigher weighing--date coding--bag
making--filling--gas injection / exhaust (optional)--bag sealing--output counting-- conveying finished products.
2. Integrated bag former, human interface touch screen, imported PLC, independent temperature controller, more suitable
for different kinds of product.
3. Multihead weigher available of 2 head, 4 head, 10 head, 14 head and 24 head.
4. Imported servo driver and motor. Ensure machine long service life.
5. Full machine made of stainless steel 304, food grade.
6. Optional device: metal detector, weight checked, date printer, turntable.




Applications:

Suitable for puffed food, roasted nuts & seeds, potato chips, candy, cake, dumplings, biscuits,

pasta, dried fruit, pet food, frozen food, different kinds of granule or irregular product.



Machine characteristic:

1. PLC controller with interface touch screen.
2. Servo-driver sealing system
3. Servo-driver film transport system
4. Date printer and film feeding system synchronous
5. Eye mark sensor for film tracking
6. Stainless steel frame




Technical Parameters:
Model BS-420G
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Multi-weigher
Weighting and filling system Head weighers
Weighting range 10-3000g
(Different product have different weighting range )
Accuracy: Bias:+-0.5g
Filling speed: 65bags/min
Hoper volume 1.6/2.5L/5L
Total power: 1.0kw
Weight
380KG





Automatic High Speed Vertical Packing Machine 5kg 10kg For Food 0



Automatic High Speed Vertical Packing Machine 5kg 10kg For Food 1
Automatic High Speed Vertical Packing Machine 5kg 10kg For Food 2
