Full Automatic Vertical Form Fill And Seal Machine With PLC Contriol System

Basic Information
Place of Origin: China
Brand Name: BOSHI Powder packing machine
Certification: CE
Model Number: BS-420P
Minimum Order Quantity: 1set
Price: 8800-10800 USD
Packaging Details: 3 plywood wooden box packaging
Delivery Time: 15-30 working days
Supply Ability: 50 sets/ month
Detail Information
Sale Point :: Working Perfect Type Of Sealing:: 4 Side Seal Bag Etc.
Machine Speed Range:: 11-60 Bags/ Min Bag Width:: 50-200 Mm
Bag Length:: 50-300 Mm Function:: FILLING, Wrapping, Labeling, Sealing, Date Printing
Driven Type:: PneumaticPillow Bag Or Gusset Bag Or Quad Side Seal Voltage:: 220/380v
Dimension(L*W*H):: L 1320 * W 920 * H 1392 Mm Weight: 700kg
High Light:

Vertical Form Fill And Seal Machine

,

PLC vertical form filling machine

,

Full Automatic vertical form filling machine


Product Description

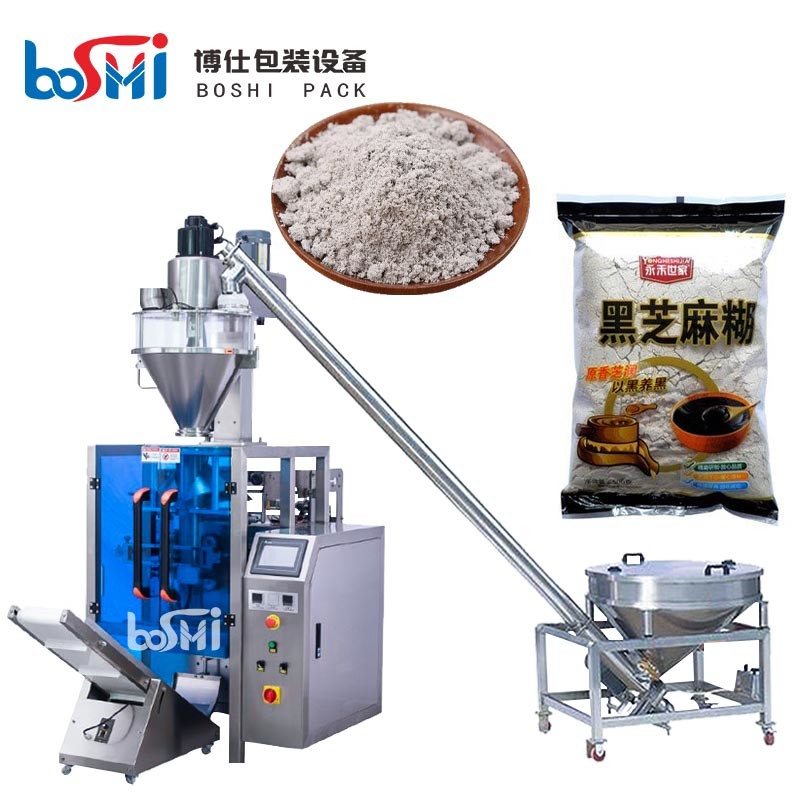

Full Automatic Vffs Powder Packaging Machine Flour Packaging Machine


Main Features:

1. Automatic feed powder ,weight powder, filling , sealing bag together .
2. Use PLC contriol the system.
3. Setting parameters (to adjust powder grams etc.) via touch screen .
4. Full implement the humanizes auto operation
5. Machine can equip mixing machine
6. Can make different bags width like 5cm,10cm,14cm...


Technical Parameters:

Model
BS-420P
Film width
Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Auger filler
Weighting and filling system Auger screw
Weighting range 10-5000g
(Different product have different weighting range )
Accuracy: Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1%
Filling speed: 10-60 bags/min
Filler hoper volume 50 L
Total power: 1.5 kw
Weight
200KG



























































Machine advantages:



1. Automatic procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting .
2. High precision, high efficiency
3. Packaging style have back sealing, gusset bag, string bags, bag pouch, etc.
4. Work environment quiet, low noise, energy saving .
5. Full set of equipment is economical.
6. Suitable for laminated film or PE film





Applications:



Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour,  spice, flour,and etc.

Full Automatic Vertical Form Fill And Seal Machine With PLC Contriol System 0

Full Automatic Vertical Form Fill And Seal Machine With PLC Contriol System 1

Full Automatic Vertical Form Fill And Seal Machine With PLC Contriol System 2
