| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Words: | Automatic Rice Good Grain Bean Vertical Packing Machine | Automatic Grade: | Fully Auto |
|---|---|---|---|
| Packaging Type: | Pillow Bag And Other Bag Type | Key Selling Points: | Cost Effective |
| Packaging Material: | Plastic, Paper | Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm |
| Voltage: | 110v/220v/380v/440v | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | Pneumatic Vertical Packing Machine,Bean Vertical Packing Machine,Automatic rice powder packing machine |
||

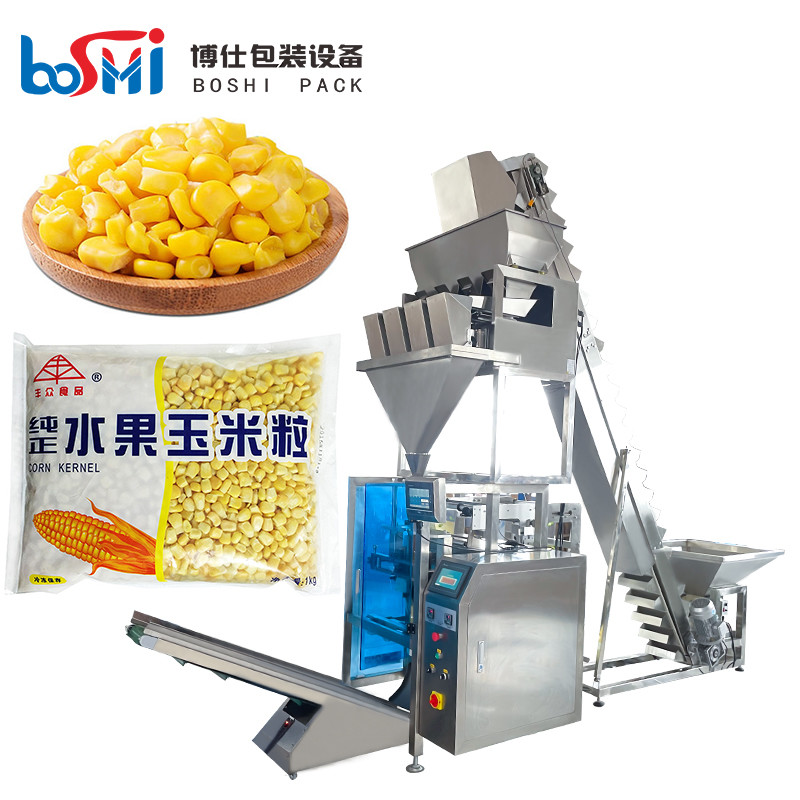

Automatic Rice Good Grain Bean Vertical Packing Machine
Product Description:
Application:
Applicable for the puffed food, nuts, seeds, potato chips, peanut, pistachio, dried fruit, jelly, frozen dumplings, rice, corn, plastic, etc. Various kinds of granular.
Standard Features:
1. Use famous brand electric and penumatic components,stable and long life circle.
2. With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
3. Perfect automatic alarm function, to minimize the loss.
4. Combine with weighing system, it can finish the process of weighing, feeding, filling, bag making, printing.
5. Bag type: can make it with pillow bag and vertical bag according to customer needs.
6. Machine running in low noise, but high efficiency
7. Easy to install film, auto correcting the excursion of the film
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
