Detail Information

Key Words:	Automatic Irregular Items Bag Vertical Form Sealing Packing Machine	Key Selling Points:	Multi-Function Packaging Machine
Automatic Grade:	Full Automatic	Voltage:	220V Single Phase 50-60hz
Driven Type:	Electrical And Pneumatic	Core Components:	Motor, PLC, Servo Driver Servo Motor Etc
Packing Style:	Pillow Bag	Packing Speed:	5-60 Bags/min
Dimension(LWH):	L 1350 * W 1000 * H 1400 Mm	Packaging Type:	Bags, Film, Foil
Film Thickness:	0.03-0.1mm	Machinery Test Report:	Provided
After Sales Service:	Video Technical Support, Online Support
High Light:	Automatic Vertical Form Fill Seal Machine , PLC Vertical Form Fill Seal Machine

Product Description

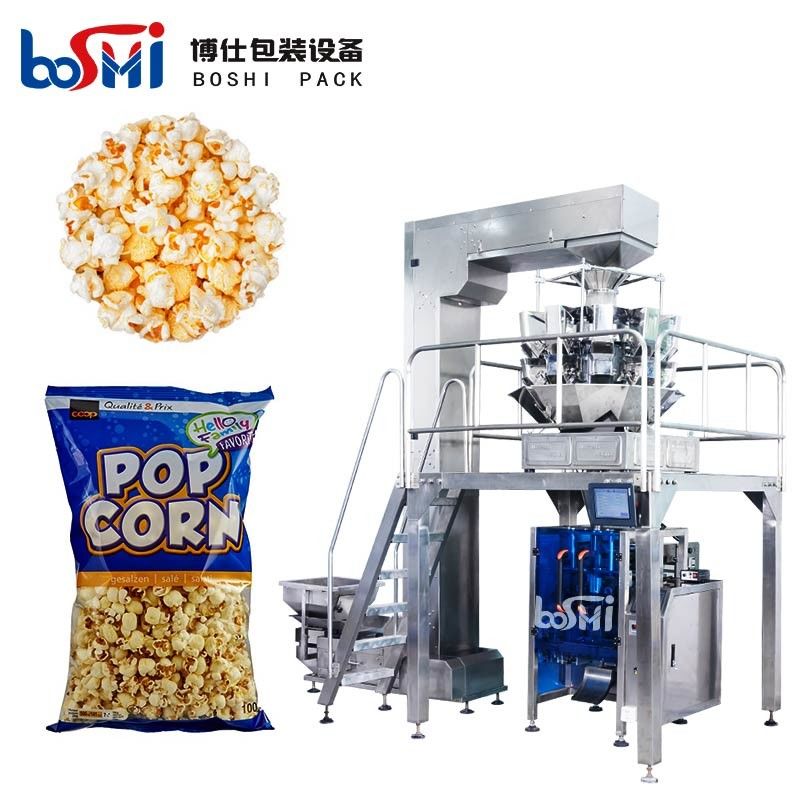

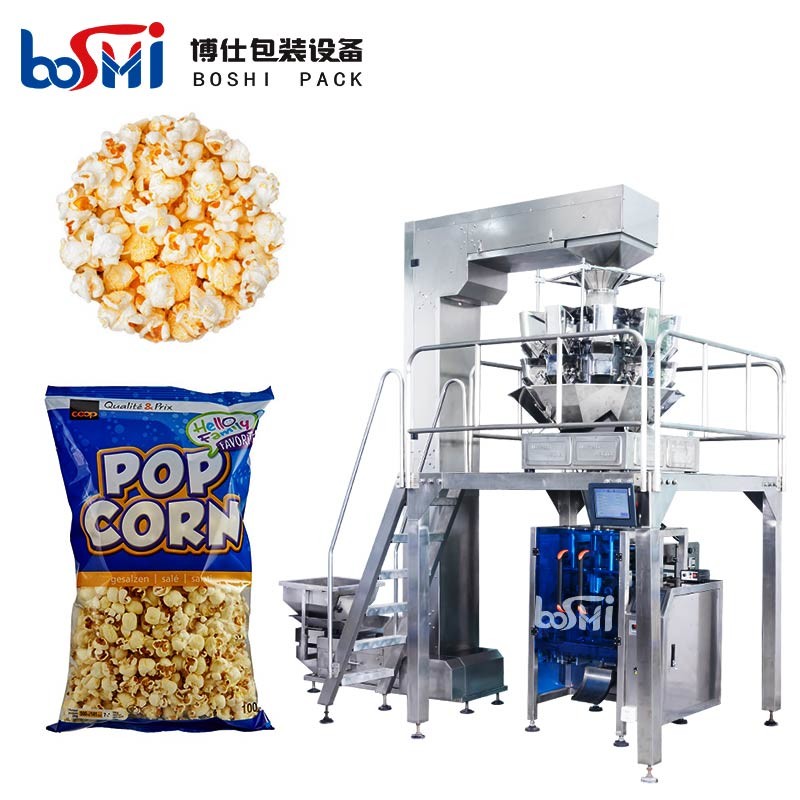

Automatic Irregular Items Bag Vertical Form Sealing Packing Machine

Main Features:

1. Full compltet production line of feeding, weighing, filling and bag making, printing date and product output.

2. Full-automatic weighing and packing system, efficient and simple to use.

3. Weigh hopper followed by discharge, effectively prevents blockage.

4. Product elevator connect with multihead weigher, it can stop and start automatically.

5. Multihead weigher in 2 head, 4 head, 10 head, 14 head, 24 head is available.

6. Working platfrom support the weigher, and working can maintance the machine on the platform directly.

Applications:

Suitable for puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits,

pasta, herbal pieces, pet food, frozen food, different kinds of granule or irregular product.

Machine characteristic:

1. PLC controller with touch screen interface

2. Servo-driven end seal jaws

3. Servo-driven film transport

4. Hot printer and film feeding system synchronous

5. Quickly changing one-piece bag former

6. Eye mark sensor for film tracking

7. Stainless steel frame

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-420 BS-520 BS-720

Minimum Order Quantity:	One sets
Price:	5000USD-18500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year

Irregular Items Bag Vertical Form Fill Seal Machine Full Automatic With PLC Control

Automatic Vertical Form Fill Seal Machine
