| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5000USD-18500USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Words: | Automatic Vffs Packing Machine With Multihead Weigher | Function: | High Efficiency |
|---|---|---|---|
| Key Selling Points: | Customize | Voltage: | 220V Single Phase 50-60hz |
| Driven Type: | Electrical And Pneumatic | Core Components: | Motor, PLC, Servo Driver Servo Motor Etc |
| Packing Style: | Pillow Bag | Packing Speed: | 5-60 Bags/min |
| Dimension(L*W*H): | L 1350 * W 1000 * H 1400 Mm | Packaging Type: | Bags, Film, Foil |
| Film Thickness: | 0.03-0.1mm | Machinery Test Report: | Provided |
| After Sales Service: | Video Technical Support, Online Support | ||
| High Light: | Pneumatic Vffs Packaging Machine,Multi Head Vffs Packaging Machine,Vffs Multi Head Packing Machine |
||

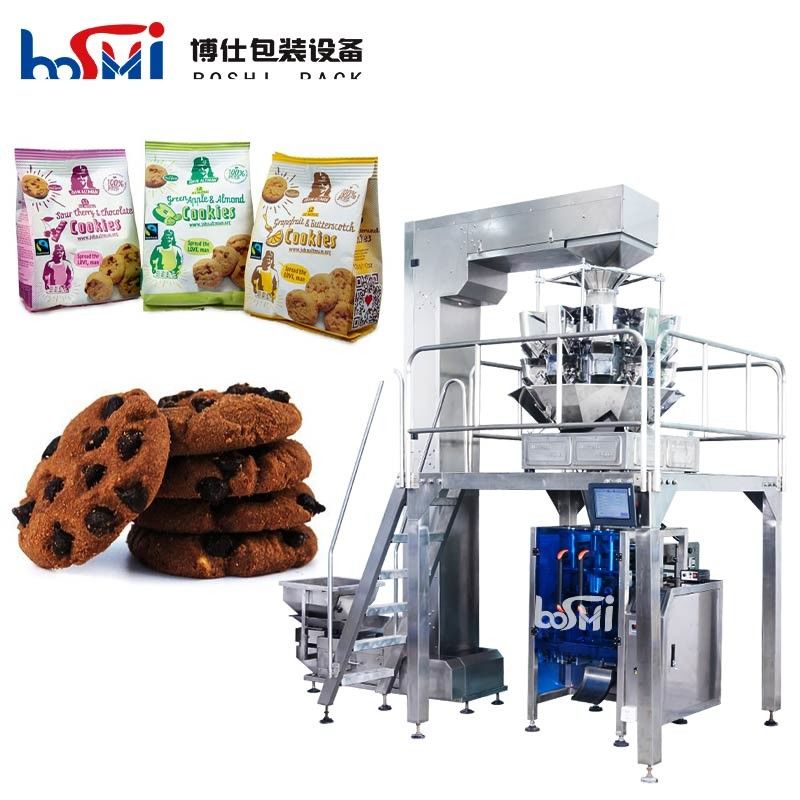

Automatic Vffs Packing Machine With Multihead Weigher
Suitable for puffed food, roasted nuts & seeds, potato chips, candy, cake, dumplings, biscuits,
pasta, dried fruit, pet food, frozen food, different kinds of granule or irregular product.
Machine characteristic:
| Model | BS-420G |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Multi-weigher | |
| Weighting and filling system | Head weighers |
| Weighting range | 10-3000g (Different product have different weighting range ) |
| Accuracy: | Bias:+-0.5g |
| Filling speed: | 65bags/min |
| Hoper volume | 1.6/2.5L/5L |
| Total power: | 1.0kw |
| Weight |
380KG
|
