| Place of Origin: | China |
|---|---|
| Brand Name: | BOSHI Powder packing machine |
| Certification: | CE |
| Model Number: | BS-420P |
| Minimum Order Quantity: | 1set |
| Price: | 8800-10800 USD |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 50 sets/ month |

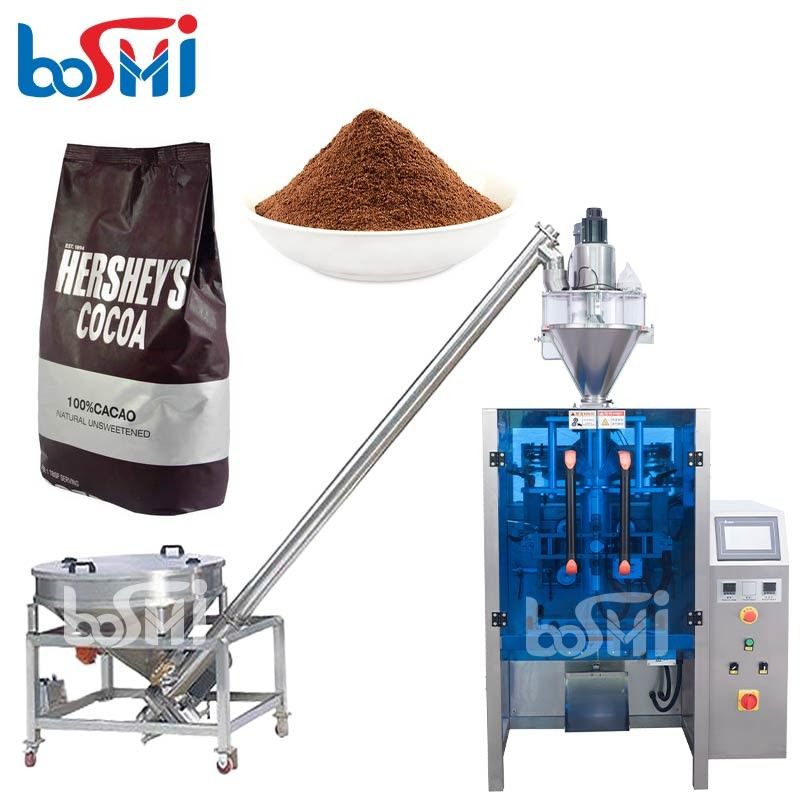

| Advantage: | High Accuracy | Key Words:: | Automatic Vertical Form Fill Seal Food Powder Spice Powder Packing Mahcine 1-5kg |
|---|---|---|---|
| Type Of Sealing:: | 4 Side Seal Or Others | Machine Speed Range:: | 5-60 Bags/ Min |
| Bag Width:: | 50-200 Mm | Bag Length:: | 50-300 Mm |
| Function:: | FILLING, Wrapping, Labeling, Sealing, Date Printing | Driven Type:: | PneumaticPillow Bag Or Gusset Bag Or Quad Side Seal |
| Voltage:: | 220/380v | Dimension(L*W*H):: | L 1320 * W 920 * H 1392 Mm |
| High Light: | Spice Powder Packing Machine PLC Control,Spice Powder Packing Machine 5kg,Spice Powder Packing Machine 5kg |
||
1. Low cost high capacity, high speed and efficiency.
2. Famous brand PLC control system, large touch screen,convenient to operate.
3. Film drawing down system and flow sealing controlled by servo motor.
4. Machine structure simple but stable, easy to operate.
5. Adopted with world famous electronic brand.
6. All in one machine, feeding, filling, measuring, bag making and printing.
|
Model
|
BS-420P |
|
Film width
|
Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Auger filler | |
| Weighting and filling system | Auger screw |
| Weighting range | 10-5000g (Different product have different weighting range ) |
| Accuracy: | Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1% |
| Filling speed: | 10-60 bags/min |
| Filler hoper volume | 50 L |
| Total power: | 1.5 kw |
| Weight |
200KG
|
Machine advantages:
Applications:
Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, spice, flour,and etc.
