| Place of Origin: | China |
|---|---|
| Brand Name: | BOSHI Powder packing machine |
| Certification: | CE, ROSH, SGS |
| Model Number: | BS-420P BS-520P |
| Minimum Order Quantity: | 1set |
| Price: | 8800-10800 USD |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 50 sets/ month |
| Machine Function: | Auto Weighting Powder | Film Materils :: | Multi-Laminated Films |
|---|---|---|---|
| Bag Types :: | Pillow Bags Flow Bags ,etc. | Machine Speed Range:: | 5-60 Bags/ Min |
| Bag Width:: | 50-200 Mm | Bag Length:: | 50-300 Mm |
| Driven Type:: | Pneumatic Pillow Bag Or Gusset Bag Or Quad Side Seal | Voltage:: | 220/380v |
| Dimension(L*W*H):: | L 1320 * W 920 * H 1392 Mm | ||
| High Light: | Multifunctional Curry Powder Packing Machine,Feeding Curry Powder Packing Machine,Weighting curry powder machine |
||

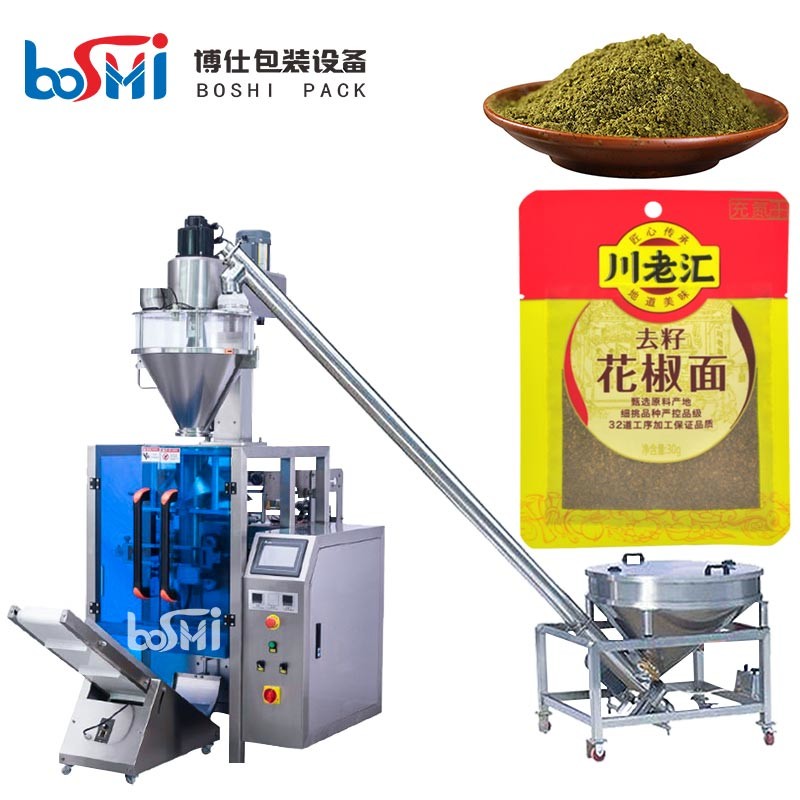

1. Suitable speed, good precision, and it use the servo drive drive the film.
2. The powders are delivery and weight and sealing by the machine
3. Whole machines work together, use touch screen.
4. Auto feeding powders to auger filler, automatic weighing and flling ;
5. Suitable for powders materials, such as milk powder, milk flour, spice powder, masala , etc.
|
Model
|
BS-420P |
|
Film width
|
Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Auger filler | |
| Weighting and filling system | Auger screw |
| Weighting range | 10-5000g (Different product have different weighting range ) |
| Accuracy: | Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1% |
| Filling speed: | 10-60 bags/min |
| Filler hoper volume | 50 L |
| Total power: | 1.5 kw |
| Weight |
200KG
|
Machine advantages:
Applications:
Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, spice, flour,and etc.
