| Place of Origin: | China |
|---|---|
| Brand Name: | BOSHI Powder packing machine |
| Certification: | CE, ROSH, SGS |
| Model Number: | BS-420P BS-520P |
| Minimum Order Quantity: | 1set |
| Price: | 8800-10800 USD |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 50 sets/ month |
| Advantages :: | High Speed And Stable Preformance | Film Materils :: | Different Kinds Of Laminated Film |
|---|---|---|---|

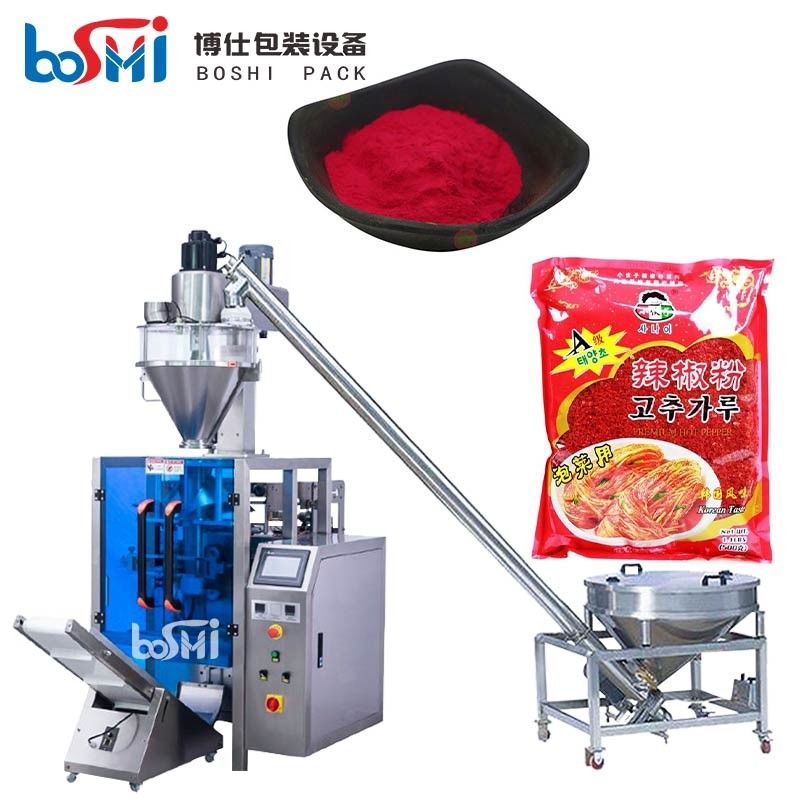

| Product Name:: | Automatic Spice Powder Curry Powder Spice Powder Masala Powder Packing Machine | Machine Speed Range:: | 5-60 Bags/ Min |
| Bag Width:: | 50-200 Mm | Bag Length:: | 50-300 Mm |
| Function:: | FILLING, Wrapping, Labeling, Sealing, Date Printing | Driven Type:: | Pneumatic Type |
| Voltage:: | 220/380v | Dimension(L*W*H):: | L 1320 * W 920 * H 1392 Mm |
| High Light: | Curry Powder Packing Machine SGS,Automatic Masala Powder Packing Machine,Pneumatic Spice Powder Packing Machine |
||
1. PLC computer control machine system. PLC from Taiwan or Germany.
2. Big touch screen. Convient to operate and control the machine.
3. High accuracy positioning with servo film transporting system. Servo motor from famous brand to ensure stable.
4. Advanced servo control system, for stable running and long service life.
5. Human interface touch screen, with momory function, easy to change bag size, save time and labour.
6. All in one machine design, full machine made of stainless steel 304.
|
Model
|
BS-420P |
|
Film width
|
Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Auger filler | |
| Weighting and filling system | Auger screw |
| Weighting range | 10-5000g (Different product have different weighting range ) |
| Accuracy: | Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1% |
| Filling speed: | 10-60 bags/min |
| Filler hoper volume | 50 L |
| Total power: | 1.5 kw |
| Weight |
200KG
|
Machine advantages:
Applications:
Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, spice, flour,and etc.
