Detail Information

Key Words:	Automatic Corn Snack Food Packing Machine For Snacks	Function:	Wrapping, Labeling, Sealing, Date Printing
Key Selling Points:	Snack Food Packing Machine	Packing Style:	Standard Pillow Bag
Driven Type:	Electrical And Pneumatic	Packing Speed:	5-60 Bags/min
Dimension(LWH):	L 1350 * W 1000 * H 1400 Mm	Packaging Type:	Bags, Film, Foil
Voltage:	110v/220v/380v/440v	Film Thickness:	0.03-0.1mm
Machinery Test Report:	Provided	Core Components:	Motor, PLC, Servo Driver Etc
Warranty Of Core Components:	1 Year
High Light:	Food Snack Packing Machine , Electrical Snack Packing Machine , Pneumatic Automatic Packing Machine

Product Description

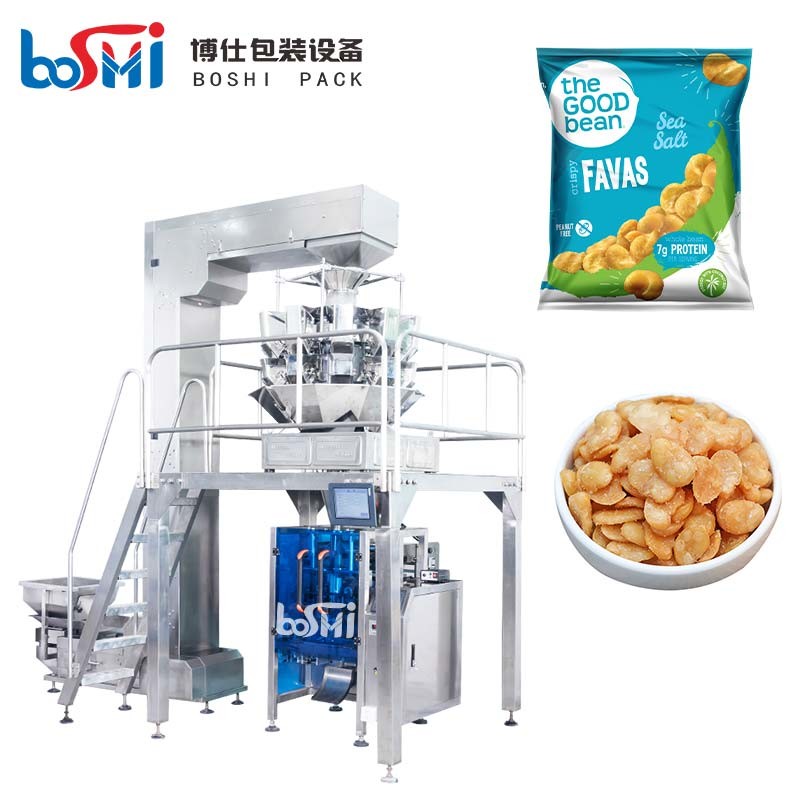

Automatic Corn Snack Food Packing Machine For Snacks

Main Features:

1. Strength of standard combination weigher : wide range of application,high price competitiveness,

reliable performance. -- 10.4 inch color display, lots of language can be chosen.

2. Imported servo driver and motor, with special design stainless steel 304 machine frame, ensure long service life.

3. Machne suitable for different kinds of packing film, OPP/CPP, OPP/CE, PET/AL/PE, also suitable for single PE film.

4. Packing material thickness better from 30um-150um.

5. We provide optional device: metal detector, weigher checker, printer, turntable, labeling machine.

Applications:

Suitable for puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits,

pasta, herbal pieces, pet food, frozen food, hardware ect

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Multihead weigher

3) Working platform

4) Main packing machine

5) Finished product conveyor

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-420 BS-520 BS-720

Minimum Order Quantity:	One sets
Price:	5000USD-18500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year
