| Place of Origin: | China |
|---|---|
| Brand Name: | BOSHI premade doybag packing machine |
| Certification: | CE, ROSH, SGS |
| Model Number: | BS-200P, BS-250P, BS-300P |
| Minimum Order Quantity: | 1 SET |
| Price: | 10900-21700 USD/SET |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
| Supply Ability: | 25 sets/month |
| Advantage: | Fully Automatic Zipper Bag Machine | Machine Speed:: | 25-50 Bags /min |
|---|---|---|---|
| Bag Type: | Doypack Zipper Bag Etc. | Support Bag Length/bag Width:: | L (100-350 )mm * W (70-200)mm |
| The Machine Size:: | 2160mm * 1600mm * 1500mm(L *W*H) | Dive Way:: | Mechanical Transmission |
| Equipment Material:: | 304 Stainless Steel (parts In Contact With Food) | Packaging Type:: | Bags, Film, Zipper Bag Packing Machine |
| Packing Film Materials:: | OPP, CPP, OPP/PE, PET/ PE, Aluminum, And Etc. | Suitable Product: | Powder |
| High Light: | Ziplock Premade Pouch Packaging Machine,Premade Pouch Packaging Machine Multifunction,Metal Powders ziplock packaging machine |
||

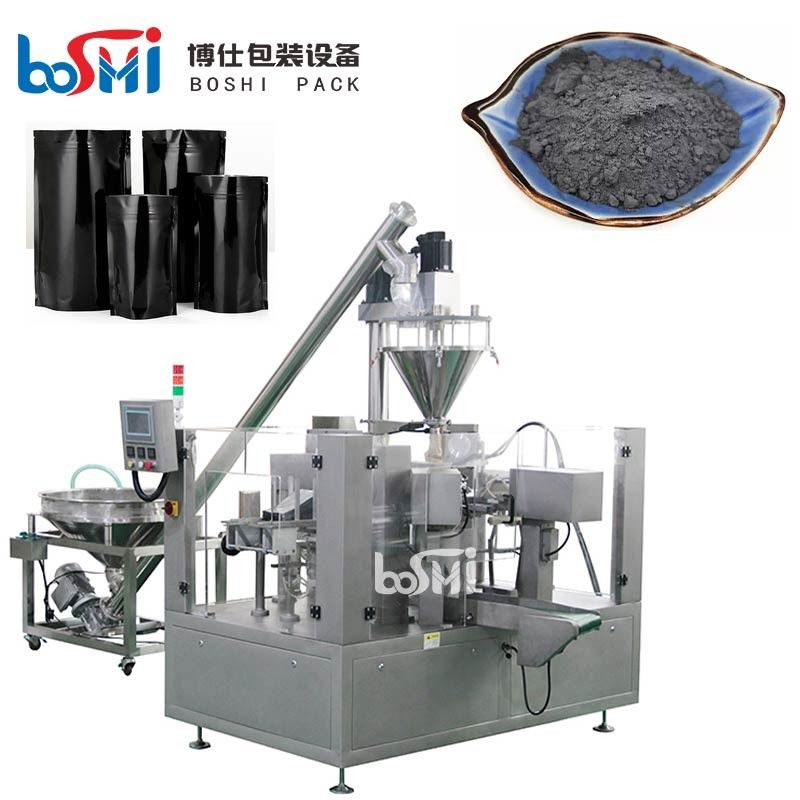

Metal Powders Ziplock Bag Packing Machine Metal Powder Premade Pouch Packing Machine
Machine Features:
1. Use touch screen control the system.
2. Whole structure are solid and strong.
3. From premade bag pick up, open,fill ,seal to output which is controlled by PLC.
4. Auto bag detecting sensor, no bag no dump ensure material splash down.
5. Support auto stop when the door is open if needed.
6. Full stainless steel 304, no worry about rust problem.
Applications:
Technical Parameters:
|
Pre-made bag packing machine technical parameters
|
||||
|
Model |
BS-200
|
BS-250
|
BS-300 |
BS-160
|
|
Working station
|
8
|
8 | 8 | 8 |
|
Bag length
|
100-350 mm
|
100-350 mm
|
100-350 mm
|
100-350 mm
|
| Bag width |
70-200 mm
|
110-250 mm
|
180-300 mm
|
80-160 mm
|
| Packing speed |
20-60 bags/min
|
20-60 bags/min
|
20-60 bags/min
|
40-80 bags/min
|
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power | 3.0KW | 3.0KW | 4.0KW |
4.2KW
|
| Air pressure |
0.6-0.8
|
0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Air consumption | 0.3 | 0.3 | 0.3 | 0.3 |
| Machine weight | 1500KG | 1500KG | 1800KG | 1800KG |
| Machine size | 2160*1600*1500 | 2160*1600*1500 | 2420*1800*1500 |
1800*1600*1500 |
Product Advantages:
1. The pre-made bag packing machine can auto load, pick up bag, open bag, weigh, flll, seal, and output.
8. Changed different size bag quickly, putting bag device's size can be easily adjusted, saves manpower and time.
Bag Types:
Suitable for 3 side seal bag, 4 side seal bag, handing hole bag, paper bag, stand up bag, zipper bag , doypack bag, M bag ,etc.
Machine Details:
Premade Bag Doypack Packing Machine Details :
