Detail Information

Key Selling Points:	Full Automatic	Key Words:	Automatic Premade Bag Doypack Snack Food Granule Packaging Machine
Packaging Type:	Stand Up Pouch	Function:	Wrapping, Labeling, Sealing, Date Printing
Dimension(LWH):	L 2160 * W 1500 * H 1500 Mm	Machine Speed:	5-60 Bags/min
Voltage:	110v/220v/380v/440v	Film Thickness:	0.03-0.1mm
Driven Type:	Pneumatic	Automatic Grade:	Automatic
Packaging Material:	Plastic, Paper	Core Components:	Motor, PLC, Servo Driver Etc
Warranty Of Core Components:	1 Year
High Light:	PLC Premade Pouch Packaging Machine , Meatball Premade Pouch Packaging Machine , Macaroni Premade Pouch Packing Machine

Product Description

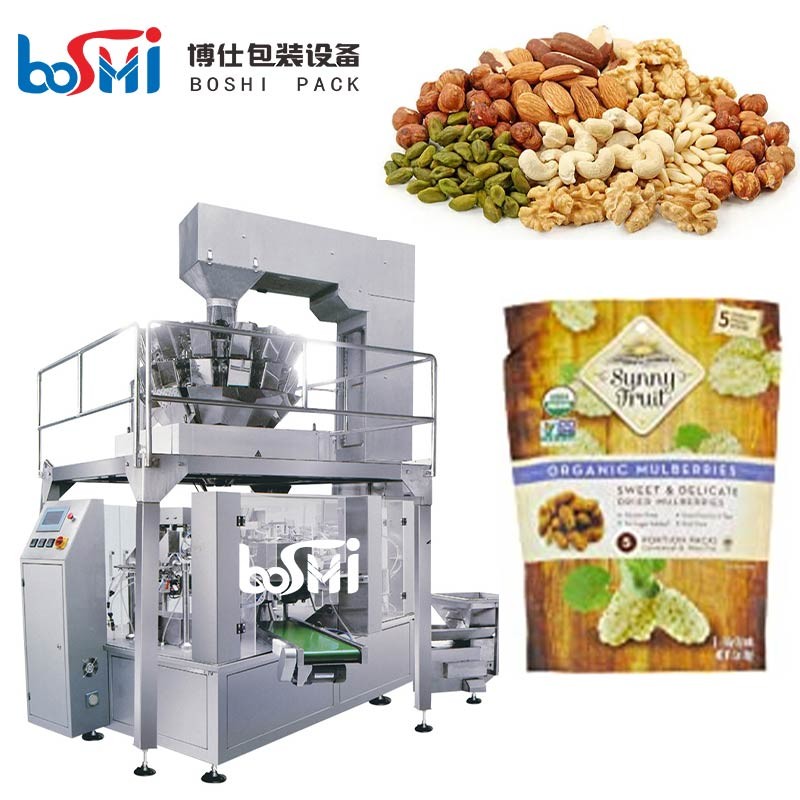

Automatic Premade Bag Doypack Snack Food Granule Packaging Machine

Applications:

Suitable for Meatball, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware

and medicine such particle, platy, strip and irregular shape.

Product Advantages

1. The pre-made bag packing machine can auto load, pick up bag, open bag, weigh, flll, seal, and output.

2. Pre-made bag packing machine is a trend of automatic production, which directly replaces manual, can achieve

packing automation, largely improving production efficiency and greatly reducing costs.

3. Contact parts use stainless steel which meet food hygiene requirements.

4. World famous PLC, servo driver, servo motor control system, stable performance and long service life.

5. Independent temperature controller, ensure the sealing more beatuiful and generous.

6. Optional device: metal detector, weigher checker, turntable.

Bag Types

Suitable for 3 side seal bag, 4 side seal bag, handing hole bag, paper bag, stand up bag, zipper bag ,

doypack bag, M bag ,etc.

Technical Parameters

Pre-made bag packing machine technical parameters
Model	BS-200	BS-250	BS-300	BS-160
Working station	8	8	8	8
Bag length	100-350 mm	100-350 mm	100-350 mm	100-350 mm
Bag width	70-200 mm	110-250 mm	180-300 mm	80-160 mm
Packing speed	20-60 bags/min	20-60 bags/min	20-60 bags/min	40-80 bags/min
Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Power	3.0KW	3.0KW	4.0KW	4.2KW
Air pressure	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Air consumption	0.3	0.3	0.3	0.3
Machine weight	1500KG	1500KG	1800KG	1800KG
Machine size	216016001500	216016001500	242018001500	180016001500

Automatic Premade Bag Doypack Snack Food Granule Packaging Machine 0

Machine Details

Premade Bag Doypack Packing Machine Details :

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-160G BS-200G BS-250G BS-300G

Minimum Order Quantity:	One sets
Price:	5000USD-25500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year

Automatic Premade Bag Doypack Snack Food Granule Packaging Machine

PLC Premade Pouch Packaging Machine
