| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5000USD-18500USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | Easy To Operate | Trade Mark: | BOSHI |
|---|---|---|---|
| Key Words: | Automatic Wafer Biscuit Pouch Packing Machine 250g | Function: | Wrapping, Labeling, Sealing, Date Printing |
| Packing Speed: | 5-60 Bags/min | Dimension(L*W*H): | L 1350 * W 1000 * H 1400 Mm |
| Packaging Type: | Bags, Film, Foil | Voltage: | 110v/220v/380v/440v |
| Film Thickness: | 0.03-0.1mm | Driven Type: | Pneumatic |
| Machinery Test Report: | Provided | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year | ||
| High Light: | 250g Automatic Pouch Packing Machine,Biscuit Automatic Pouch Packing Machine,Pneumatic wafer biscuit packing machine |
||

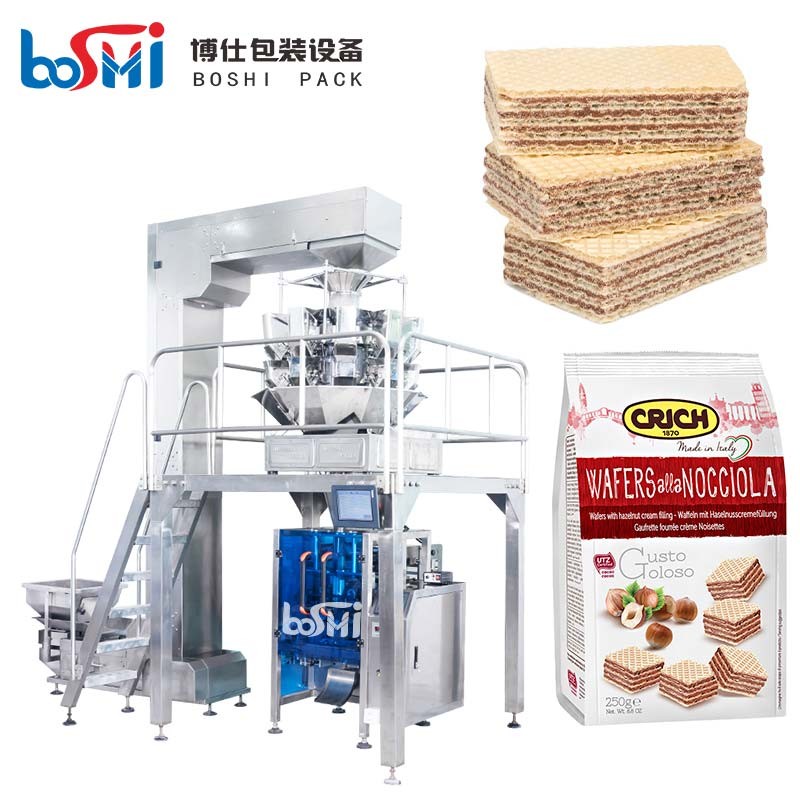

Automatic Wafer Biscuit Pouch Packing Machine 250g
4. Double -belt pulling with servo control system, to make the film transporting smoothly.
5. Alam system to solve problem quickly and protect worker.
Suitable for frozen product, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,
jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food, hardware and medicine such particle,
strip and irregular shape.
Whole machine main including 4 parts:
| Model | BS-420G |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Multi-weigher | |
| Weighting and filling system | Head weighers |
| Weighting range | 10-3000g (Different product have different weighting range ) |
| Accuracy: | Bias:+-0.5g |
| Filling speed: | 65bags/min |
| Hoper volume | 1.6/2.5L/5L |
| Total power: | 1.0kw |
| Weight |
380KG
|
