Automatic Namkeen Snack Packing Machine 1kg For Pillow Bag Style

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5000USD-18500USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Key Words: Automatic Namkeen Snack Packing Machine 1kg Packaging Type: Stand-up Pouch, Bags, Film, Foil, Pouch
Key Selling Points: Best Selling Model In 2022 Voltage: 380V Three Phase 50-60hz
Function: Automatic Packaging System Driven Type: Electrical And Pneumatic
Core Components: Motor, PLC, Servo Driver Servo Motor Etc Packing Style: Pillow Bag
Packing Speed: 5-60 Bags/min Dimension(L*W*H): L 1350 * W 1000 * H 1400 Mm
Film Thickness: 0.03-0.1mm Machinery Test Report: Provided
After Sales Service: Video Technical Support, Online Support
High Light:

Namkeen Snack Packing Machine

,

Snack Packing Machine 1kg

,

Pillow Bag namkeen packing machine


Product Description

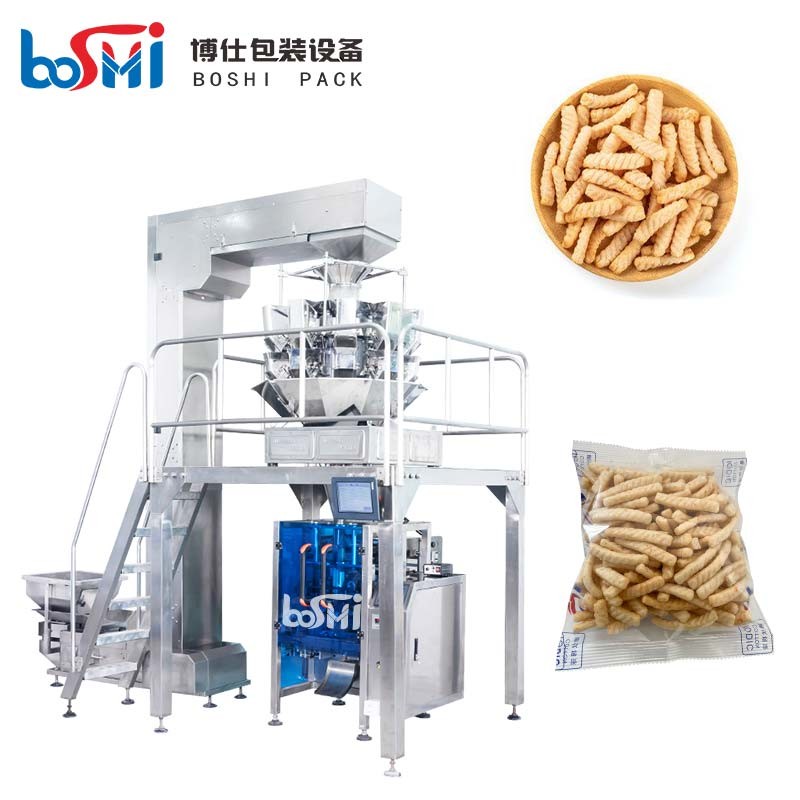

Automatic Namkeen Snack Packing Machine 1kg





Main Features:
1)The system can finish all processes automatically: feeding, weighing, sealing, date printing.
It has high accurate weighing and high efficiency without broke.
2) Automatic film rectifying deviation funtion.
3) Electronic components is famous brand.

4. Running in a high automatization and intellectualization, save labour and cost.

5. Empty bag sealing prevention control to save bags.

6. Provide standard packing solution and customize packing solution.





Applications:

Suitable for puffed food, shrimp, potato chips, candy, oatmeal, biscuits,

pasta, seeds, pet food, frozen food, different kinds of granule or irregular product.



Machine characteristic:

1. PLC controller with touch screen.
2. Servo-driven cutting knife system
3. Servo-driven film transport system
4. Date printer and film feeding system synchronous
5. Quickly changing bag former
6. Eye mark sensor for film tracking
7. Main machine stainless steel 304




Technical Parameters:
Model BS-420G
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Multi-weigher
Weighting and filling system Head weighers
Weighting range 10-3000g
(Different product have different weighting range )
Accuracy: Bias:+-0.5g
Filling speed: 65bags/min
Hoper volume 1.6/2.5L/5L
Total power: 1.0kw
Weight
380KG
