| Place of Origin: | China |
|---|---|
| Brand Name: | BOSHI Powder packing machine |
| Certification: | CE, ROSH, SGS |
| Model Number: | BS-420P BS-520P |
| Minimum Order Quantity: | 1set |
| Price: | 8800-10800 USD |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 50 sets/ month |

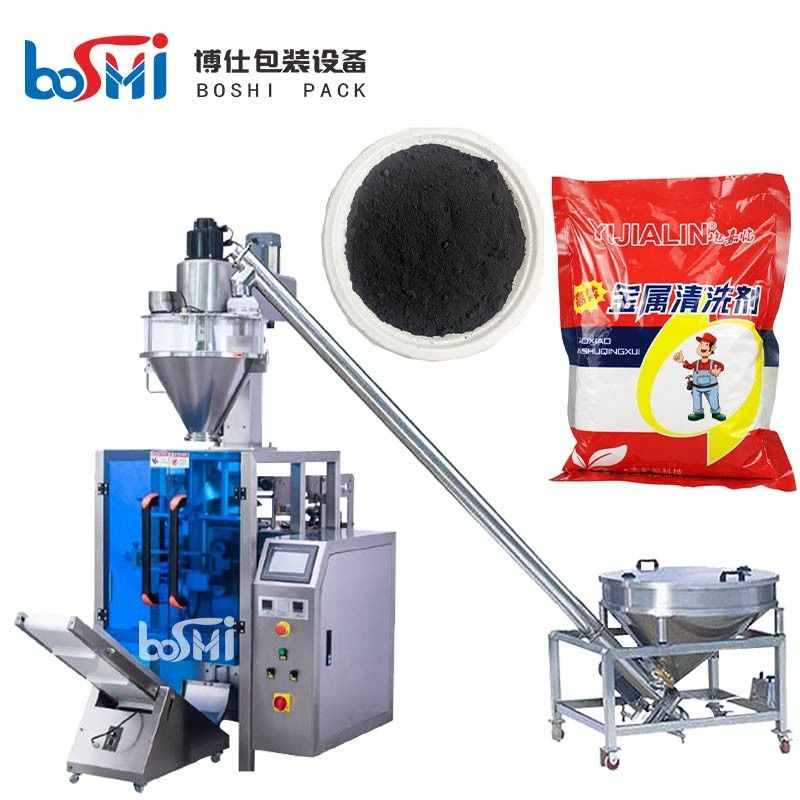

| Machine Name: | Powder Packing Machine | Machine Including: | Feeding Machine ,auger , Packing Machine |
|---|---|---|---|
| Bag Types :: | 3 Side Seal Bag ,etc. | Machine Speed Range:: | 5-60 Bags/ Min |
| Bag Width:: | 50-200 Mm | Bag Length:: | 50-300 Mm |
| Driven Type:: | Pneumatic Pillow Bag Or Gusset Bag Or Quad Side Seal | Voltage:: | 220/380v |
| Dimension(L*W*H):: | L 1320 * W 920 * H 1392 Mm | ||
| High Light: | Metal Powder Packaging Machinery,SUS304 Powder Packaging Machinery,ODM powder packaging equipment |
||
1. Whole machine design are more optimized for more convenient to use.
2. Compact machine design for good to stable working.
3. SUS304 machine frame with strong appearance.
4. Key components makes machine working stable.
5. Can equip date printer, TTO.
6. Filling systems is auger filler .
|
Model
|
BS-420P |
|
Film width
|
Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Auger filler | |
| Weighting and filling system | Auger screw |
| Weighting range | 10-5000g (Different product have different weighting range ) |
| Accuracy: | Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1% |
| Filling speed: | 10-60 bags/min |
| Filler hoper volume | 50 L |
| Total power: | 1.5 kw |
| Weight |
200KG
|
Machine advantages:
Applications:
Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, spice, flour,and etc.
