| Place of Origin: | China |
|---|---|
| Brand Name: | BOSHI Powder packing machine |
| Certification: | CE, ROSH, SGS |
| Model Number: | BS-420P BS-520P |
| Minimum Order Quantity: | 1set |
| Price: | 8800-10800 USD |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Supply Ability: | 50 sets/ month |
| Advantages :: | Stable | Film Materils :: | OPP/CPP ,ETC. |
|---|---|---|---|
| Bag Type :: | Back Seal | Machine Speed Range:: | 5-60 Bags/ Min |
| Bag Width:: | 50-200 Mm | Bag Length:: | 50-300 Mm |
| Function:: | FILLING, Wrapping, Labeling, Sealing, Date Printing | Driven Type:: | PneumaticPillow Bag Or Gusset Bag Or Quad Side Seal |
| Voltage:: | 220/380v | Dimension(L*W*H):: | L 1320 * W 920 * H 1392 Mm |
| High Light: | 50g Small Powder Packing Machine,150g Small Powder Packing Machine,Labeling Powder Packing equipment |
||

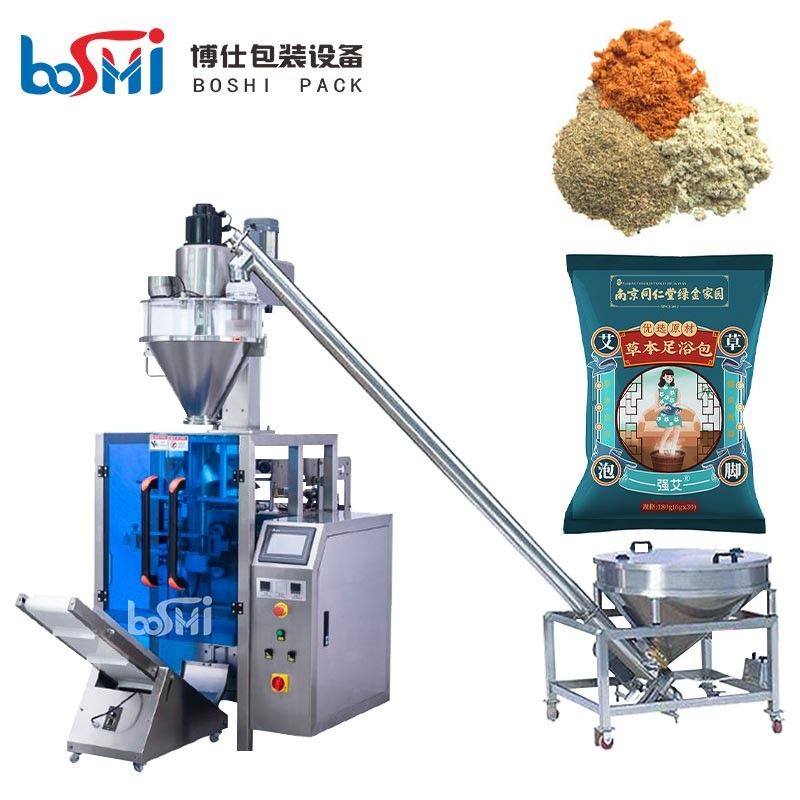

1. PLC computer control machine system. PLC from Taiwan or Germany.
2. Big touch screen. Convient to operate and control the machine.
3. High accuracy positioning with servo film transporting system. Servo motor from famous brand to ensure stable.
4. Warn protection function, which help to handle the trouble faster.
5. Automatically complete all packaging processes, from measuring, feeding, filling, printing, seal finished bag.
6. The machine can make pillow-type bag and standing bag according to customer’s requirements.
|
Model
|
BS-420P |
|
Film width
|
Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Auger filler | |
| Weighting and filling system | Auger screw |
| Weighting range | 10-5000g (Different product have different weighting range ) |
| Accuracy: | Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1% |
| Filling speed: | 10-60 bags/min |
| Filler hoper volume | 50 L |
| Total power: | 1.5 kw |
| Weight |
200KG
|
Machine advantages:
Applications:
Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, spice, flour,and etc.
