Detail Information

Key Selling Points:	High Speed And Stable Performance	Place Of Origin:	Made In Foshan, Guangdong
Key Words:	Automatic Almond Cashew Nut Dried Nut Vertical Packaging Machine	Function:	Wrapping, Labeling, Sealing, Date Printing
Packing Speed:	5-60 Bags/min	Dimension(LWH):	L 1350 * W 1000 * H 1400 Mm
Packaging Type:	Bags, Film, Foil	Voltage:	110v/220v/380v/440v
Film Thickness:	0.03-0.1mm	Driven Type:	Pneumatic
Machinery Test Report:	Provided	Core Components:	Motor, PLC, Servo Driver Etc
Warranty Of Core Components:	1 Year
High Light:	Vertical Cashew Nut Packing Machine , Almond Cashew Nut Packing Machine , PLC almond packing machine

Product Description

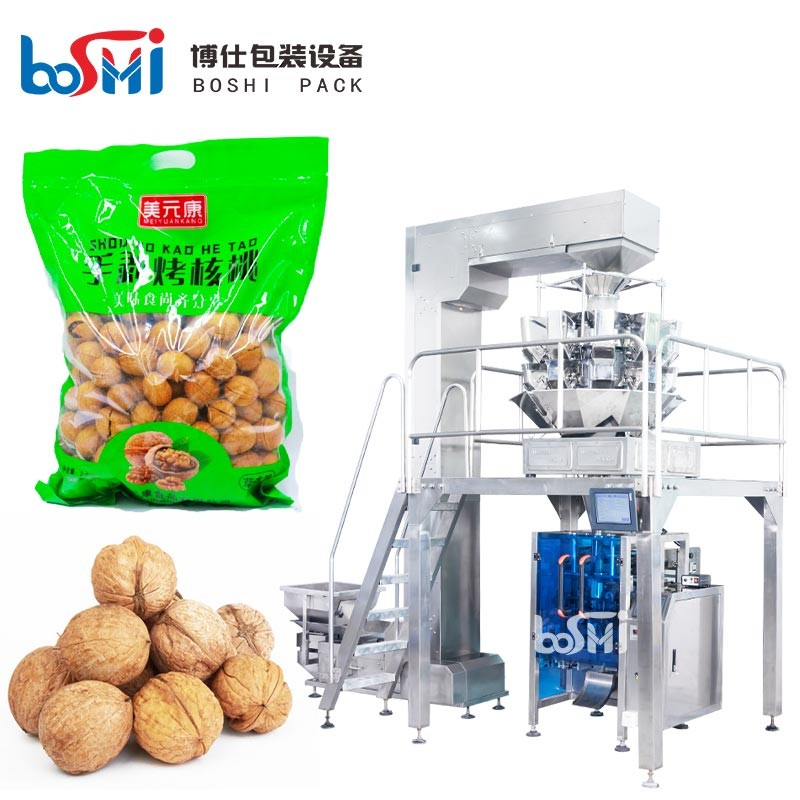

Automatic Almond Cashew Nut Dried Nut Vertical Packaging Machine

Main Features:

1) World wide famous brand PLC control system, with interface touch screen.

2) With alarm system to reduce waste and protect worker.

3) It can complete feeding, weighing, filling, bag making, date coding, gas charging or exhausting, production counting,

4) Bag type: standard pillow bag, gusseted pillow bag, other bag type can custom base on customer' requirement.

5) With servo-motor controlled,mechanic horizontal sealing system,The machine is more stable and fast

speed than the old generation packing machine.

Applications:

Suitable for frozen product, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food, hardware and medicine such particle,

strip and irregular shape.

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Multihead weigher

3) Working platform

4) Main packing machine

5) Finished product conveyor

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

Tag:

Place of Origin:	Guangdong, China
Brand Name:	BOSHI
Certification:	CE SGS
Model Number:	BS-420 BS-520 BS-720

Minimum Order Quantity:	One sets
Price:	5000USD-18500USD per set
Packaging Details:	Standard three plywood wooden cases
Delivery Time:	10-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per year

Vertical Almond Cashew Nut Packing Machine With PLC Control

Vertical Cashew Nut Packing Machine
