Plantain Chips Snack Packing Machine PLC Control With Touch Screen

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5000USD-18500USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Key Selling Points: High Packaging Grade,save Time And Labour Place Of Origin: FOSHAN
Key Words: Automatic Dry Food Apple Banana Chips Plantain Chips Packaging Machine Function: Wrapping, Labeling, Sealing, Date Printing
Packing Speed: 5-60 Bags/min Dimension(L*W*H): L 1350 * W 1000 * H 1400 Mm
Packaging Type: Bags, Film, Foil Voltage: 110v/220v/380v/440v
Film Thickness: 0.03-0.1mm Driven Type: Pneumatic
Machinery Test Report: Provided Core Components: Motor, PLC, Servo Driver Etc
Warranty Of Core Components: 1 Year
High Light:

Plantain Chips Snack Packing Machine


PLC Snack Packing Machine


Touch Screen plantain chips packing machine

Product Description

Automatic Dry Food Apple Banana Chips Plantain Chips Packaging Machine



Main Features:
1) World famous brand PLC control system, wide version touch screen, convenient to operate
2) Servo film pulling system, Pneumatic horizontal sealing.
3) Perfect alarm system to reduce waste;
4) English and Chinese screen display, operation is simple, other language is acceptable.
5) PLC and servo system, function is more stable.
6) It can stock 99 product datas, easy to change product and save time.
7) Servo driver and motor to control the roll film system.



Suitable for frozen product, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust,

jelly, candy, dried fruit, apple flake, peanut, chocolate, frozen food, hardware and medicine such particle,

strip and irregular shape.



Whole machine main including 4 parts:

1) Z type bucket elevator
2) Multihead weigher
3) Working platform
4) Main packing machine
5) Finished product conveyor


Technical Parameters:
Model BS-420G
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Weighting and filling system Head weighers
Weighting range 10-3000g
(Different product have different weighting range )
Accuracy: Bias:+-0.5g
Filling speed: 65bags/min
Hoper volume 1.6/2.5L/5L
Total power: 1.0kw

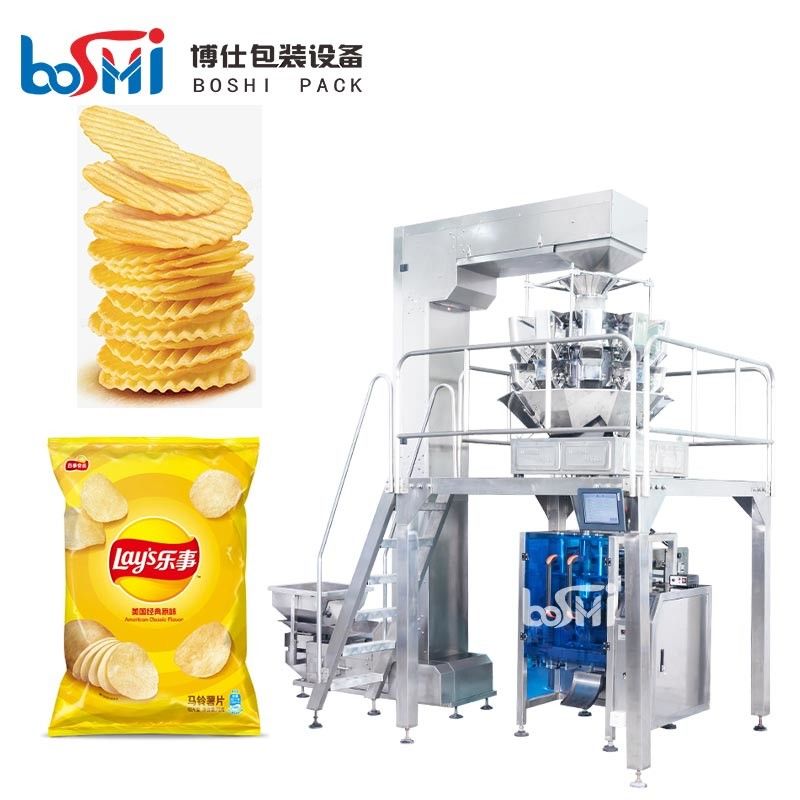

Plantain Chips Snack Packing Machine PLC Control With Touch Screen 0


Plantain Chips Snack Packing Machine PLC Control With Touch Screen 1
Plantain Chips Snack Packing Machine PLC Control With Touch Screen 2
