| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | BOSHI |
| Certification: | CE SGS |
| Model Number: | BS-420 BS-520 BS-720 |
| Minimum Order Quantity: | One sets |
| Price: | 5800USD-12130USD per set |
| Packaging Details: | Standard three plywood wooden cases |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 sets per year |
| Key Selling Points: | Reasonable Price | Key Words: | Automatic 500g 1000g Salt Sugar Grains Beans Seed Filling And Packing Machine |
|---|---|---|---|
| Packaging Type: | Pillow Bag Or Gusseted Pillow Bag | Automatic Grade: | Full Automatic |
| Packaging Material: | Plastic, Paper | Dimension(L*W*H): | L 1080 * W 1300 * H 1400 Mm |
| Voltage: | 110v/220v/380v/440v | Film Thickness: | 0.03-0.1mm |
| Driven Type: | Pneumatic | Machinery Test Report: | Provided |
| Packing Speed: | 5-60 Bags/min | Core Components: | Motor, PLC, Servo Driver Etc |
| Warranty Of Core Components: | 1 Year |

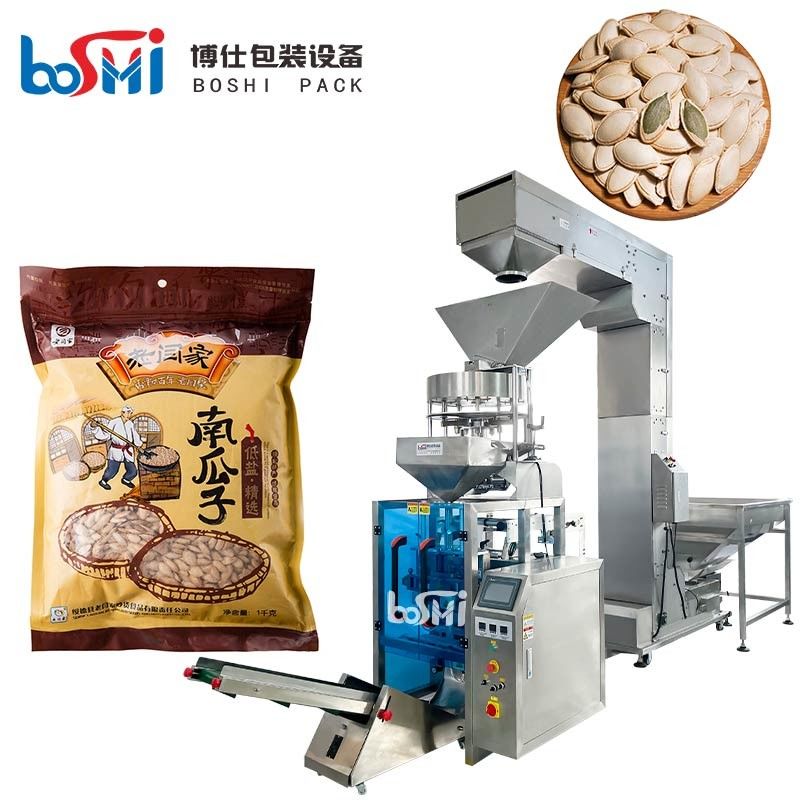

Automatic 500g 1000g Salt Sugar Grains Beans Seed Filling And Packing Machine
Product Description:
Application:
Applicable for the chocolate, nuts, seeds, potato chips, peanut, nuts, dried fruit, jelly, frozen dumplings, biscuits, corn, hardware, plastic, etc. Various kinds of granular.
Standard Features:
1. Import PLC computer control system, human-machine screen, easy touch screen operation.
2. With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
3. Touch screen can store product packing information, no need to set again every time, save time and labour.
4. Touch screen with alarm and fault showing system, worker can find the problem and solve them easily.
5. Optional device:date printer, metal detector, weight checker and rotary table.
Specdification:
|
Model
|
BS-420V |
| Measure system | Volumetric cup |
| Measuring range |
20ml-1200ml(need to change the cups)
|
| Cup capacity | 80L |
| Accuracy | +/-1% |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length |
50-300 mm
|
| Packing speed | 10-70 bags/ min |
| Type of sealing |
Pillow bag,3 or 4 side seal and gusset bag,etc.
|
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Power | 2KW |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
