| Place of Origin: | China |
|---|---|
| Brand Name: | BOSHI premade doybag packing machine |
| Certification: | CE |
| Model Number: | BS-200P, BS-250P, BS-300P |
| Minimum Order Quantity: | 1 SET |
| Price: | 10900-21700 USD/SET |
| Packaging Details: | 3 plywood wooden box packaging |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
| Supply Ability: | 25 sets/month |
| Packing Speed:: | 20-60 Pack/min | Bag Length/bag Width:: | L (100-350 )mm * W (70-200)mm |
|---|---|---|---|
| Voltage:: | 220v | The Machine Size:: | 2160mm * 1600mm * 1500mm(L *W*H) |
| Dive Way:: | Mechanical Transmission | Equipment Material:: | 304 Stainless Steel (parts In Contact With Food) |
| Packaging Type:: | Bags, Film, Zipper Bag Packing Machine | Packing Film Materials:: | OPP, CPP, OPP/PE, PET/ PE, Aluminum, And Etc. |
| Key Words: | 500 1000g Powder Stand Up Pouch Quad Bag Spice Powder Seasoning Powder Packing Machine |

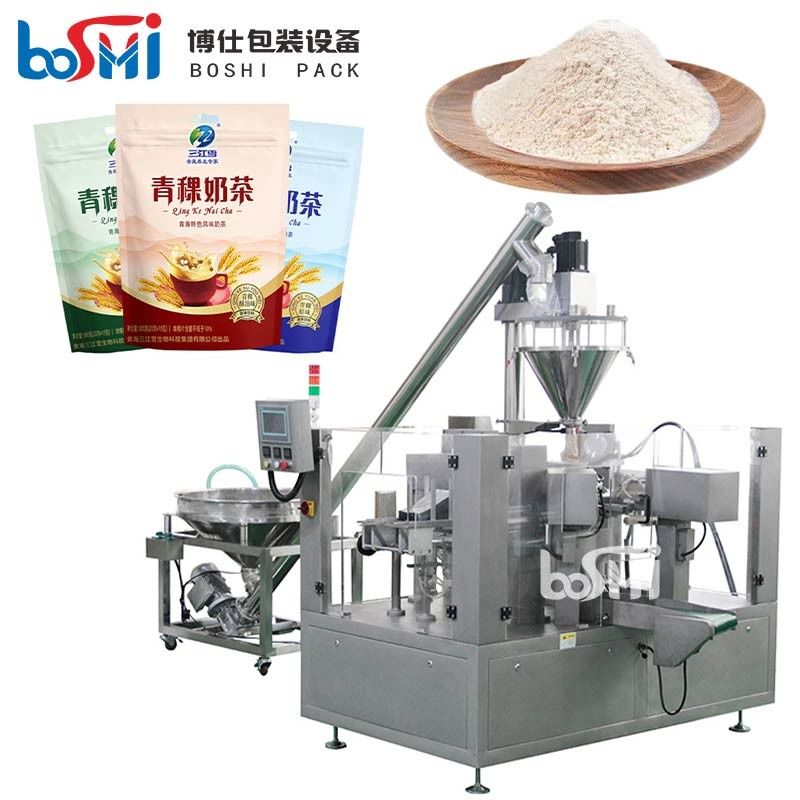

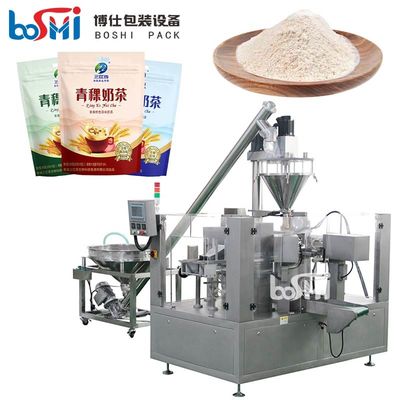

500 1000g Powder Stand Up Pouch Quad Bag Spice Powder Seasoning Powder Packing Machine
Product details:
1. SIEMENS PLC & HMI Touch Screen
2. Equipped with frequency converter and SMC cylinder
3. Self-diagnosis: No filling and nor sealing when it is detected that the bag is not open or not open completely
4. With high sensitive eye mark for bag filling and sealing.
5. Imported PLC system and electronic components, stable and long service life.
6. The filling system can be washed by water. Easy to clean and maintance.
Applications:
powder, cocoa powder, wheat flour, vitamin powder, grain powder, industrial powder, chemical powder,fertilizer powder and etc.
Technical Parameters:
|
Pre-made bag packing machine technical parameters
|
||||
|
Model |
BS-200
|
BS-250
|
BS-300 |
BS-160
|
|
Working station
|
8
|
8 | 8 | 8 |
|
Bag length
|
100-350 mm
|
100-350 mm
|
100-350 mm
|
100-350 mm
|
| Bag width |
70-200 mm
|
110-250 mm
|
180-300 mm
|
80-160 mm
|
| Packing speed |
20-60 bags/min
|
20-60 bags/min
|
20-60 bags/min
|
40-80 bags/min
|
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power | 3.0KW | 3.0KW | 4.0KW |
4.2KW
|
| Air pressure |
0.6-0.8
|
0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Air consumption | 0.3 | 0.3 | 0.3 | 0.3 |
| Machine weight | 1500KG | 1500KG | 1800KG | 1800KG |
| Machine size | 2160*1600*1500 | 2160*1600*1500 | 2420*1800*1500 |
1800*1600*1500 |
Product Advantages:
1. The pre-made bag packing machine can auto load, pick up bag, open bag, weigh, flll, seal, and output.
8. Changed different size bag quickly, putting bag device's size can be easily adjusted, saves manpower and time.
Bag Types:
Suitable for 3 side seal bag, 4 side seal bag, handing hole bag, paper bag, stand up bag, zipper bag , doypack bag, M bag ,etc.
Machine Details:
Premade Bag Doypack Packing Machine Details :
