1kg 2kg 5kg Rice Packing Machine Food Grade SS304 Material Multifunctional

Basic Information
Place of Origin: Guangdong, China
Brand Name: BOSHI
Certification: CE SGS
Model Number: BS-420 BS-520 BS-720
Minimum Order Quantity: One sets
Price: 5000USD-18500USD per set
Packaging Details: Standard three plywood wooden cases
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Key Words: Automatic 1kg 2kg 5kg Rice Packing Machine Voltage: 380V Three Phase 50-60hz
Material: Food Grade SS304 Key Selling Points: Multifunctional
Driven Type: Electrical And Pneumatic Core Components: Motor, PLC, Servo Driver Servo Motor Etc
Packing Style: Pillow Bag Packing Speed: 5-60 Bags/min
Dimension(L*W*H): L 1350 * W 1000 * H 1400 Mm Packaging Type: Bags, Film, Foil
Film Thickness: 0.03-0.1mm Machinery Test Report: Provided
After Sales Service: Video Technical Support, Online Support
High Light:

SS304 5kg Rice Packing Machine


Multifunctional 5kg Rice Packing Machine


1kg Rice Packing Machine

Product Description

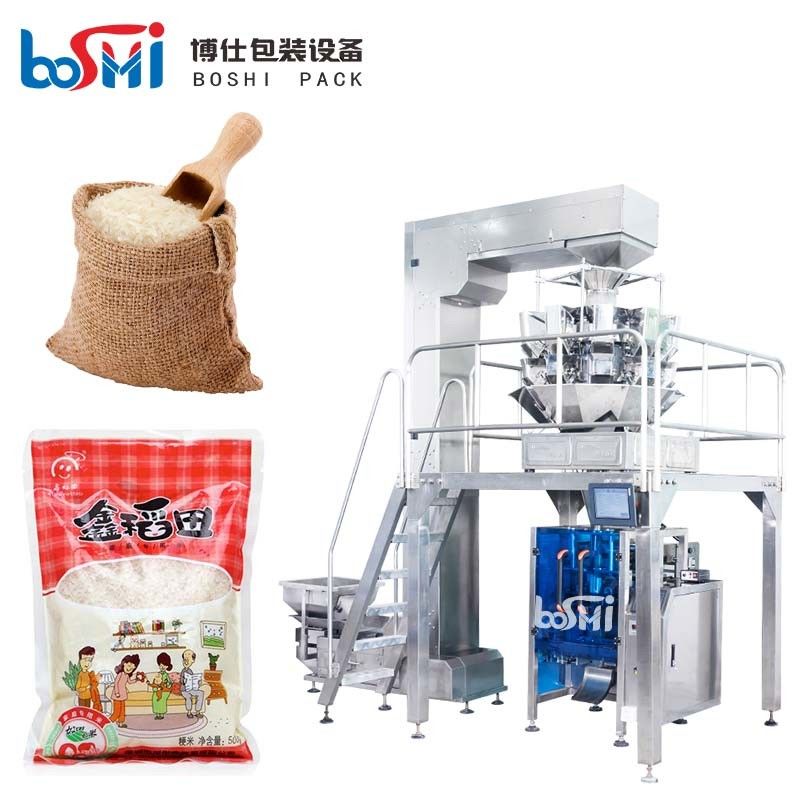

Automatic 1kg 2kg 5kg Rice Packing Machine



Main Features:
1. Full complete production line of multihead weigher packing machine.
2. Full-automatic weighing and packing system, efficient and simple to use.
3. Language can be custom by customer.
4. Delta servo motor and driver, all the spare parts are international brands.
5. Reciprocating type of pulling film, more stable and faster.
6. All working step in one operation. Control on screen directly.
7. Date printer and anti-static device are for optional.



Suitable for granule product like rice, seed, bean and sugar. Puffed food, potato chips, candy, sweet dumplings, biscuits,

pasta, herbal pieces, pet food, frozen food, different kinds of granule or irregular product.


Machine characteristic:

1. PLC controller with touch screen.
2. Servo-driven cutting knife system
3. Servo-driven film transport system
4. Date printer and film feeding system synchronous
5. Quickly changing bag former
6. Eye mark sensor for film tracking
7. Main machine stainless steel 304


Technical Parameters:
Model BS-420G
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min
Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg
Weighting and filling system Head weighers
Weighting range 10-3000g
(Different product have different weighting range )
Accuracy: Bias:+-0.5g
Filling speed: 65bags/min
Hoper volume 1.6/2.5L/5L
Total power: 1.0kw



1kg 2kg 5kg Rice Packing Machine Food Grade SS304 Material Multifunctional 0


1kg 2kg 5kg Rice Packing Machine Food Grade SS304 Material Multifunctional 1
1kg 2kg 5kg Rice Packing Machine Food Grade SS304 Material Multifunctional 2
