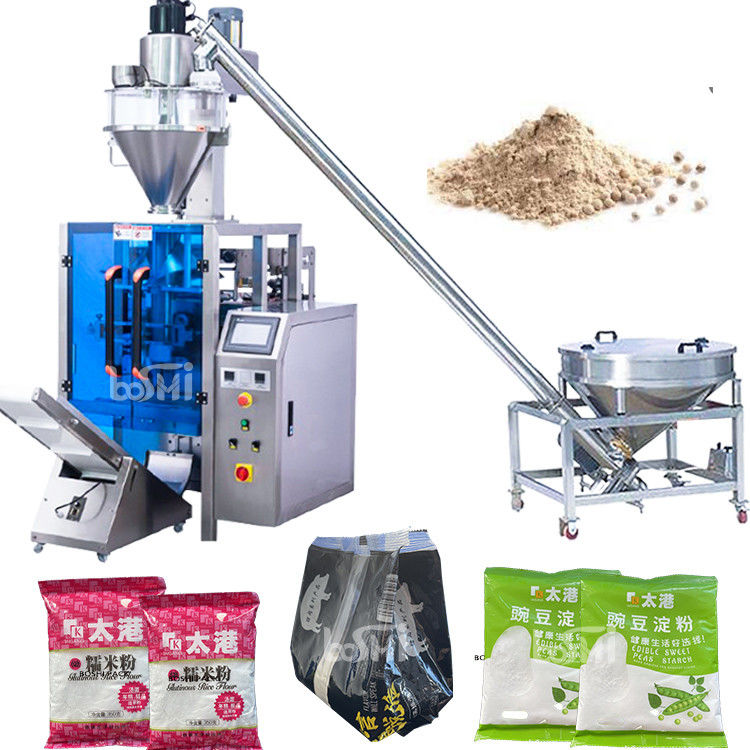

Powder Packaging Machine 500g Flour Packing Machine

Basic Information
Place of Origin: China
Brand Name: BOSHI Powder packing machine
Certification: CE
Model Number: BS-420P
Minimum Order Quantity: 1set
Price: 8800-10800 USD
Packaging Details: 3 plywood wooden box packaging
Delivery Time: 15-30 working days
Supply Ability: 50 sets/ month
Detail Information
Type :: BS-420P BS-520P Film Width:: Max.420mm
Packing Speed:: 10-70 Bags/ Min Type Of Sealing:: Pillow Bag Or Gusset Bag Or Quad Side Seal
Bag Width:: 50-200 Mm Bag Length:: 50-300 Mm
Weight (KG):: 420kg Applicable Industries:: Food Powder, Chemical Powder, Industrial Powder
Function:: FILLING, Wrapping, Labeling, Sealing, Date Printing Voltage:: 220/380v
Dimension(L*W*H):: L 1320 * W 920 * H 1392 Mm

Product Description

Powder Packaging Machine 500g Flour Packing Machine​
Main Features:

1. Simple structure in linear type ,easy in installation and maintain.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. High pressure double crank to control the die opening and closing.
4. Running in a high automation and intelligent ,no pollution
5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Technical Parameters:
Film width
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300 mm
Packing speed 10-70 bags/ min

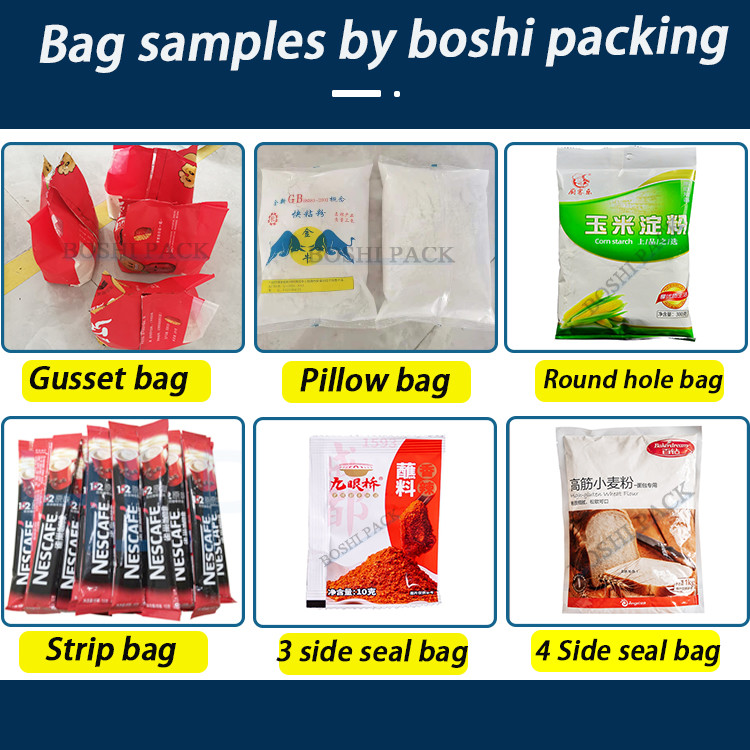

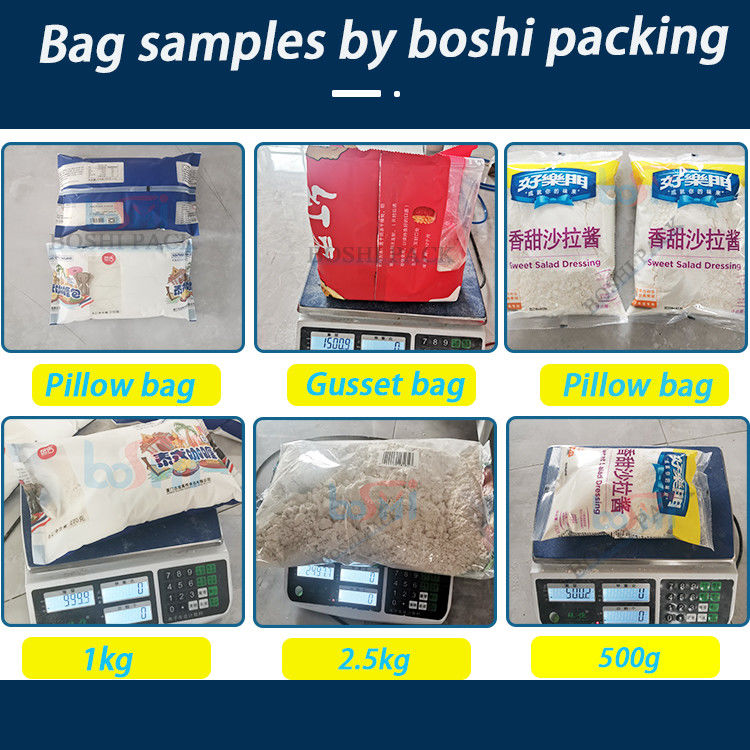

Type of sealing Pillow bag,3 or 4 side seal and gusset bag
Packing material OPP/CPP, OPP/CE,PET/PE etc.
Air consumption 0.65 mpa
Gas consumption 0.3 cubic meter/ min
Machine dimensions 1080*1300*1400 mm
Machine weight 600 kg

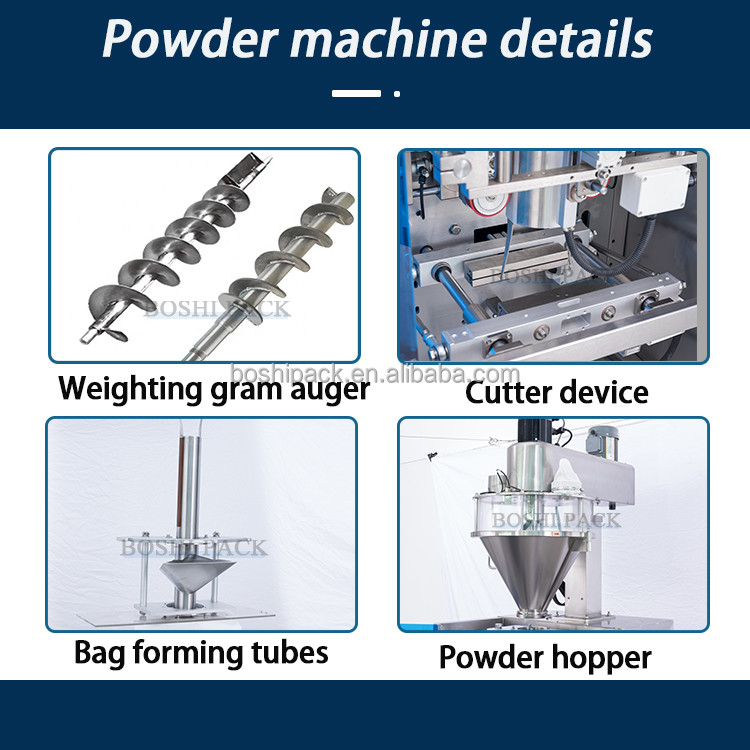

Auger filler
Weighting and filling system Auger screw
Weighting range 10-5000g
(Different product have different weighting range )
Accuracy: Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1%
Filling speed: 10-60 bags/min
Filler hoper volume 50 L
Total power: 1.5 kw






























Standard Features:

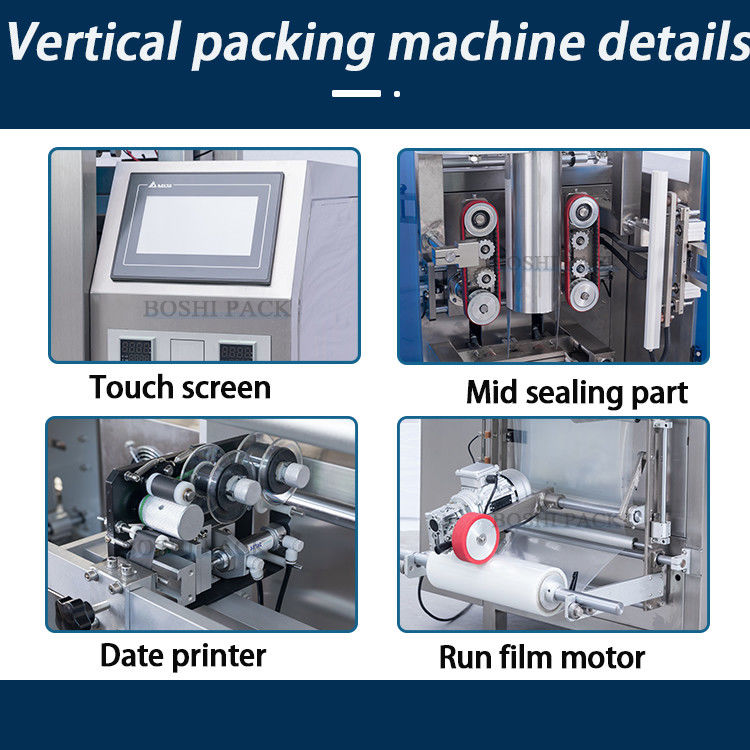

1. Use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Sensor Tracking, Digital Temperature Control,etc.
2. Easy to operate, It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end
 sealing temperature control independently.

4. Middle back sealing temperature control independently.

5. Suitable for pure PE,  BOPP/CPP, CPP/OPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-layer packaging materials.

6. Whole machine only need 1 person to handle.





Suitable for filling and packing varieties of powders, such as milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour,  spice, flour,and etc.

Powder Packaging Machine 500g Flour Packing Machine 0

Powder Packaging Machine 500g Flour Packing Machine 1

Powder Packaging Machine 500g Flour Packing Machine 2
